General Information :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 777160-001

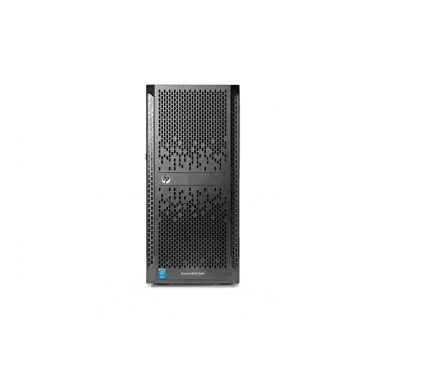

Product Name: Proliant Ml110 Gen9 – 4.5u Tower Server (Entry Model)
Processor & Chipset :
Processor Type : Intel Xeon E5-2603v3/ 1.6GHz
Quick path Interconnect : 6.4 Gt/S
Number Of Cores : 6 Core
64-Bit Computing : Yes
Compatible Processor Socket : Fclga2011-3
Installed Qty : 1
Max Supported Qty : 1
Chipset Type : Intel C610 Series
Cache Memory :
Cache Memory Type : Smart Cache
Installed Size : 15mb
Cache Per Processor : 15 Mb
Memory :
Installed Size : 4(1×4)Gb / 256 Gb (Max)
Technology : Ddr4 Sdram – Advanced Ecc
Memory Speed : 1600 Mhz
Memory Specification Compliance : Pc4-17000
Form Factor : Dimm 288-Pin
Memory Slots: 8 x DDR4 RAM Slots
Features : Registered, Online Spare Memory, Hp Smartmemory
Configuration Features : 1 X 4 Gb
Ram Supported : Pc4-17000 – 128 Gb – Load-Reduced ¦ Pc4-17000 – 256 Gb – Registered
Storage:
Hard Drive : No Hdd
Optical Drive : None
Storage Controllers:
Storage Controller Name : Smart Array B140i
Buffer Size : None
Disk Drive : Up To 6gb/S Sata (Serial Ata)
Connectors : 10 Internal Sata Connectors
Server Interface : X4 Pcie 2.0
Sata Speed : 6gb/S Sata Links
Logical Drives Supported : Up To 8 Logical Volumes (6 Physical Drives)
Host Memory Addressing : 64-Bit, Supporting Greater Than 4gb Server Memory Space
Raid Support : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Display & Graphics Controllers :
Graphics Processor : No Graphics
Network & Communication :
Networking Type : Integrated
Interface (Bus) Type : Pci Express X2
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : Hp 330i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
Power Description :
Device Type : Power Supply
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 100-230v (50/60 Hz)
Power Provided : 350 Watt
Expansion/ Connectivity :
Expansion Bays Total (Free) :
1 (Total) / 1 (Free) X External 5.25
4 (Total) / 4 (Free) X Internal 3.5 Lff
Expansion Slots Total (Free) :
8 (Total) / 7 (Free) X Dimm 288-Pin
1 (Total) / 0 (Free) X Cpu
2 (Total) / 2 (Free) X Pcie 3.0 X8 – Half-Length, Full-Height
2 (Total) / 2 (Free) X Pcie 3.0 X4 – Half-Length, Full-Height
1 (Total) / 1 (Free) X Pcie 3.0 X16 – Three-Quarter-Length, Full-Height
1 (Total) / 1 (Free) X Microsd Card (Internal)
Interfaces & Ports :
1 X Vga ( 1 Rear )
2 X Lan (Gigabit Ethernet)
1 X Hp Ilo
5 X Usb 3.0 ( 2 Front, 2 Rear, 1 Internal )
3 X Usb 2.0 ( 2 Rear, 1 Internal )
Dimensions & Weight :
Depth : 18.9 Inch
Width : 7.7 Inch
Height : 17.3 Inch
Weight : 27 Lbs
