GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 777339-S01

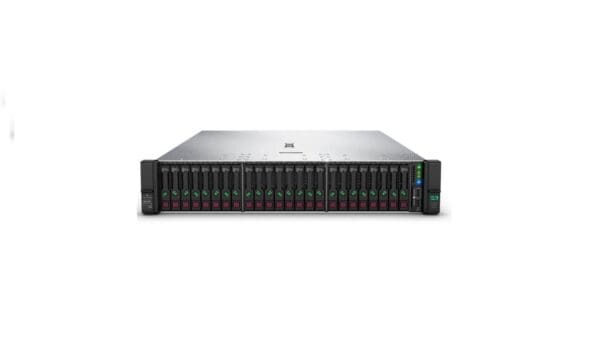

Product Name: Proliant Dl380 Gen9 2u Rack Mount Server(S-Buy)
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5-2640v3/2.6 Ghz
Max Turbo Speed : 3.4 Ghz
Multi-Core Technology: 8 Core
64-Bit Computing: Yes
Installed Processor Qty: 1
Max Supported Processor Qty: 2
Chipset Model: intel C610
Upgradability: Upgradable
CACHE MEMORY:
Cache Memory Type: L3 Cache
Installed Size: 20mb
Cache Per Processor: 20mb
MEMORY:
Installed Ram Size: 32g
Max Supported Size : 384gb
Technology: Ddr4 Sdram
Memory Speed: 1866 Mhz
Memory Specification Compliance: Pc4-17000
Form Factor: Dimm 288-Pin
Memory Slots: 24 x DDR4 RAM Slots
Features: Registered, Online Spare Memory
Configuration Features: 2x 16gb
RAM SUPPORTED:
Pc4-17000 – 768 Gb – Load-Reduced
Pc4-17000 – 384 Gb – Registered
STORAGE:
Hard Drive: None
STORAGE CONTROLLERS:
Storage Controller Type: 1 X Raid – Pci Express 3.0 X8
Controller Interface Type: Serial SAta-600 / Sas 3.0
Storage Controller Name: Smart Array P440ar With 2gb Fbwc
Channel Qty : 8
Raid Level:Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Buffer Size : 2 Gb
DISPLAY & GRAPHICS:
Graphics Controller Type: Integrated
Graphics Processor: Matrox G200eh2
Video Interfaces : Vga
NETWORKING :
Ethernet Ports: 4x Gigabit Ethernet
Ethernet Controller: Hp 331flr
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 4
Features: Wake On Lan (Wol), Pxe Support
POWER DESCRIPTION:
DEVICE TYPE: POWER SUPPLY – HOT PLUG
POWER REDUNDANCY: YES
POWER REDUNDANCY SCHEME: 1+1
INSTALLED QTY: 2
MAX SUPPORTED QTY: 2
VOLTAGE REQUIRED: AC 120/230 V ( 50/60 HZ )
POWER PROVIDED: 800 WATT
80 PLUS CERTIFICATION : 80 PLUS PLATINUM
