GENERAL INFORMATION :
Manufacturer : Hewlett packard
Manufacturer part number : 777424-B21

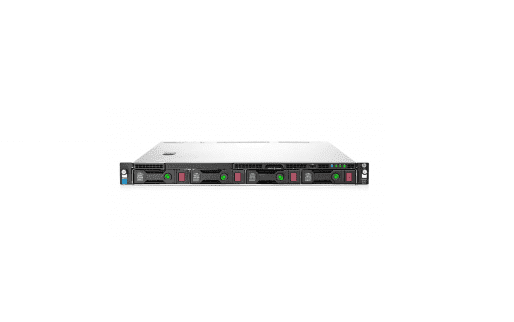

Product name: proliant dl120 Gen9 – 1u rack Mount (entry model)
PROCESSOR & CHIPSET :
Processor type : intel xeon E5-2603v3/ 1.6GHz
Quickpath interconnect : 6.4 gt/s
Number of cores : 6 core
64-bit computing : yes
Compatible processor socket : fclga2011-3
Installed qty : 1
Max supported qty : 1
Chipset type : intel c610 series
CACHE MEMORY :
Cache memory type : smart cache
Installed size : 15mb
Cache per processor : 15 mb
MEMORY :
Installed size : 4gb (1x4gb) / 128 gb (max)
Technology : ddr4 sdram pc4-17000r (ddr4-1600)
Form factor : dimm 288-pin
Total memory slots : 8 ddr4 Slots
Ram supported : 128 gb – registered, 256 gb – load-reduced
STORAGE:
Hard drive : none
Optical drive : none
STORAGE CONTROLLERS:
Storage controller name : smart array b140i
Buffer size : none
Disk drive : up to 6gb/s sata (serial ata)
Connectors : 10 internal sata connectors
Server interface : x4 pcie 2.0
Sata speed : 6gb/s sata links
Logical drives supported : up to 8 logical volumes (6 physical drives)
Host memory addressing : 64-bit, supporting greater than 4gb server memory space
Raid support : raid 0, raid 1, raid 5, raid 10, raid 50
