GENERAL INFORMATION :
Manufacturer : hewlett packard
Manufacturer part number : 778641-B21

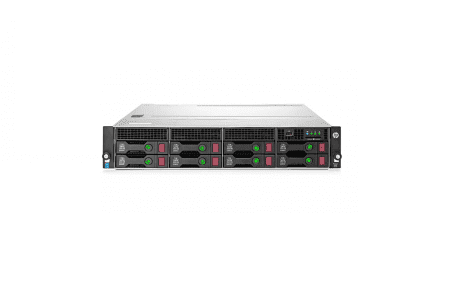

Product name: proliant dl80 Gen9 – 2u rack Mount (base model)
PROCESSOR & CHIPSET :
Processor type : intel xeon E5-2609v3/ 1.9GHz
Quickpath interconnect : 6.40 gt/s
Number of cores : 6 core
64-bit computing : yes
Compatible processor socket : fclga2011-3
Installed qty : 1
Max supported qty : 2
Chipset type : intel c610 series
CACHE MEMORY :
Cache memory type : smart cache
Installed size : 15mb
Cache per processor : 15 mb
MEMORY :
Installed size : 8(1×8) gb / 128 gb (max)
Technology : ddr4 sdram pc4-17000r (ddr4-1600)
Form factor : dimm 288-pin
Total memory slots : 8 ddr4 Slots
Ram supported : 128 gb – registered, 256 gb – load-reduced
STORAGE:
Hard drive : none
Optical drive : none
STORAGE CONTROLLERS:
Storage controller name : smart array h240
Buffer size : none
Disk drive : 12gb/s sas (serial attached scsi), 6gb/s sata (serial advanced technology attachment)
Sas port link rate : 12gb/s per physical link supported
Architecture : serial attached scsi (sas), serial advanced technology attachment (sata)
Sas connectors : 2×4 internal (mini-sas)
Data transfer method : 1.2gb/s bandwidth per port for combined throughput of up to 9.6gb/s
Simultaneous connection : 2 x 4 sas connectors
Port transfer rate : 1.2 gb/s per x8 sas port
Maximum capacity : 144tb
Memory addressing : 64-bit, supporting servers memory greater than 4gb
Raid support : raid 0, raid 1, raid 5, raid 10, raid 50
