GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 7780853-S01

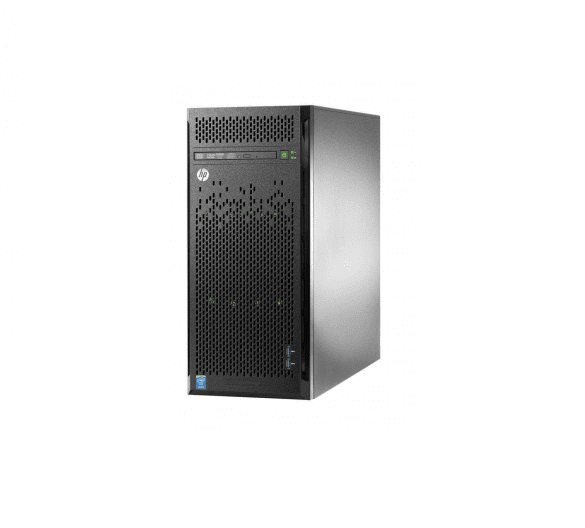

Product Name: Proliant Ml150 Gen9 5u Tower Server S-Buy
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5-2620v3/ 2.4ghz
Number Of Cores : 6 Core
Installed Qty : 2
Max Supported Qty : 2
Cpu Upgradability : Upgradable
Chipset : Intel C610
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 30mb
Cache Per Processor : 15 Mb
MEMORY :
Installed Size : 16gb (2x8gb)/ 256gb (Max)
Technology : Ddr4 Sdram Pc4-17000r (Ddr4-1600)
Form Factor : Dimm 288-Pin
Total Memory Slots : 16 Ddr4 Slots
Ram Supported : Pc4-17000 – 256 Gb – Load-Reduced ¦ Pc4-17000 – 256 Gb – Registered
STORAGE & STORAGE CONTROLLERS :
Hard Drive : None
Optical Drive : None
Storage Controller Type : 1 X Raid – Plug-In Card – Pci Express 3.0 X8
Controller Interface Type : Sata-600 / Sas 3.0
Storage Controller Name : Hp H240 Smart Host Bus Adapter
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Plug-In Card
Graphics Processor : Nvidia Quadro K2200
NETWORK & COMMUNICATION :
Network Type : Integrated
Interface (Bus) Type : Pci Express X2
Ethernet Ports : 2x Gigabit Ethernet
Ethernet Controller : Hp 331i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
POWER DESCRIPTION :
Device Type : Power Supply
Nominal Voltage : Ac 100-240v (50/60 Hz)
Power Provided : 900 Watt
80 Plus Certification : 80 Plus Gold
