GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 784100-S01

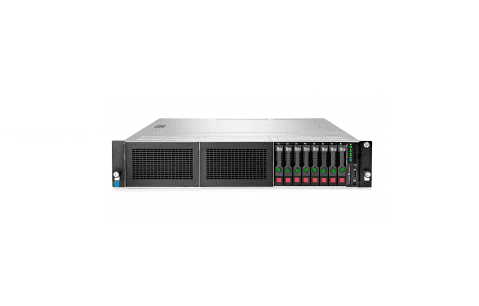

Product Name : Proliant Dl180 Gen9 2u Rack Server S-Buy
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5-2609-V3 / 1.9 Ghz
Number Of Cores : Hexa-Core (6 Core)
64-Bit Computing : Yes
Installed Qty : 1
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Type : Intel C610
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 15 Mb
Cache Per Processor : 15 Mb
MEMORY :
Installed Size : 8 Gb
Maximum Size : 512 Gb
Technology : Ddr4 Sdram
Memory Speed : 1600 Mhz
Form Factor : Dimm 288-Pin
Memory Slots: 16 x DDR4 RAM Slots
Features : Registered, Hp Smartmemory
Configuration Features : 1 X 8 Gb
RAM SUPPORTED :
Pc4-17000 – 256 Gb – Registered, Pc4-17000 – 512 Gb – Load-Reduced
STORAGE & STORAGE CONTROLLER :
Hard Drive : None
Storage Controller Type : 1 X Raid – Integrated
Controller Interface Type : Sata 6gb/S
Storage Controller Name : Hp Dynamic Smart Array B140i
Channel Qty : 10
Raid Level : Raid 0, Raid 1, Raid 5
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated
Graphics Processor : Matrox G200eh2
NETWORK & COMMUNICATION :
Networking : Network Adapter – Integrated
Interface (Bus) Type : Pci Express 2.0 X2
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller(S) : Hp Nc361i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : IEEE 802.3, IEEE 802.3U, IEEE 802.3AB, IEEE 802.1AS, IEEE 802.3AZ.
