GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 785836-B21

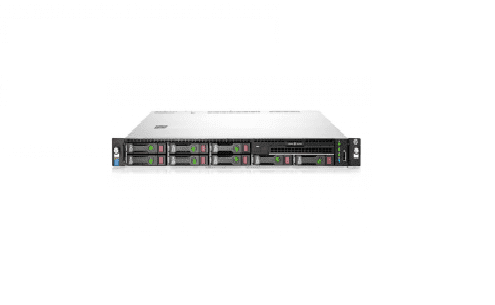

Product Name: Proliant Dl60 Gen9 – 1u Rack Mount (Base Model)
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5-2609v3/ 1.9GHz
Quickpath Interconnect : 6.4 Gt/S
Number Of Cores : 6-Core
64-Bit Computing : Yes
Compatible Processor Socket : Fclga2011-3
Installed Qty : 1
Max Supported Qty : 2
hipset Type : Intel C610 Series
CACHE MEMORY :
Cache Memory Type : Smart Cache
Installed Size : 15mb
Cache Per Processor : 15 Mb
MEMORY :
Installed Size : 8(1×8) Gb / 128 Gb (Max)
Technology :Â Sdram Pc4-17000r (Ddr4-1600)
Form Factor : Dimm 288-Pin
Total Memory Slots : 8 Ddr4 Slots
Ram Supported : 128 Gb – Registered, 256 Gb – Load-Reduced
STORAGE:
Hard Drive : None
Optical Drive : None
STORAGE CONTROLLERS:
Storage Controller Name : Smart Array B140i
Buffer Size : None
Disk Drive : Up To 6gb/S Sata (Serial Ata)
Connectors : 10 Internal Sata Connectors
Server Interface : X4 Pcie 2.0
Sata Speed : 6gb/S Sata Links
Logical Drives Supported : Up To 8 Logical Volumes (6 Physical Drives)
Host Memory Addressing : 64-Bit, Supporting Greater Than 4gb Server Memory Space
Raid Support : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
GRAPHICS CONTROLLER :
Type : Integrated
Graphics Processor : Matrox G200eh2
Video Interfaces : Vga
NETWORK & COMMUNICATION:
Ethernet Controller : Hp Ethernet 1gb 2-Port 361i Adapter
Network Interface : 10base-T/100base-Tx/1000base-Tx
Ethernet Controller : I350 Powerville
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Connector : Rj-45 (Two)
Compliant Standards : IEEE 802.3, IEEE 802.3U, IEEE 802.3AB, IEEE 802.1AS, IEEE 802.3AZ
POWER DESCRIPTION :
Device Type : Flex Slot Platinum Plus Power Supply
Installed Qty : 1
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 550 Watt.
