General Information :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 788146-S01

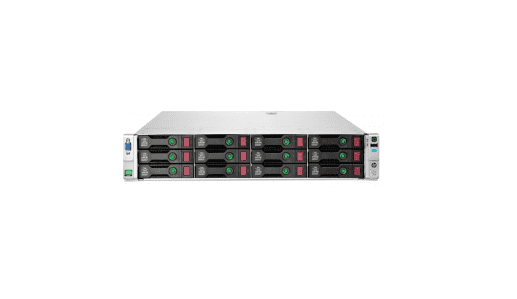

Product Name: Proliant Dl80 Gen9 – 2u Rack Mount (S-Buy)
Processor & Chipset :
Processor Type : Intel Xeon E5-2603v3/ 1.6ghz
Quickpath Interconnect : 6.40 Gt/S
Number Of Cores : 6-Core
64-Bit Computing : Yes
Compatible Processor Socket : Fclga2011-3
Installed Qty : 1
Max Supported Qty : 2
Chipset Type : Intel C610 Series
Cache Memory :
Cache Memory Type : Smart Cache
Installed Size : 15mb
Cache Per Processor : 15 Mb
Memory :
Installed Size : 8gb / 128 Gb (Max)
Technology : Ddr4 Sdram Pc4-17000r (Ddr4-1600)
Form Factor : Dimm 288-Pin
Total Memory Slots : 8 Ddr4 Slots
Ram Supported : 128 Gb – Registered, 256 Gb – Load-Reduced
Storage:
Hard Drive : None
Optical Drive : None
Storage Controllers:
Storage Controller Name : Smart Array B140i
Buffer Size : None
isk Drive : Up To 6gb/S Sata (Serial Ata)
Connectors : 10 Internal Sata Connectors
Server Interface : X4 Pcie 2.0
Sata Speed : 6gb/S Sata Links
Logical Drives Supported : Up To 8 Logical Volumes (6 Physical Drives)
Host Memory Addressing : 64-Bit, Supporting Greater Than 4gb Server Memory Space
Raid Support : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Graphics Controller :
Type : Integrated
Graphics Processor : Matrox G200eh2
Video Interfaces : Vga
Network & Communication:
Ethernet Controller : Hp Ethernet 1gb 2-Port 361i Adapter
Network Interface : 10base-T/100base-Tx/1000base-Tx
Ethernet Controller : I350 Powerville
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Connector : Rj-45 (Two)
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab, Ieee 802.1as, Ieee 802.3az
Power Description :
Device Type : Flex Slot Platinum Plus Power Supply
Installed Qty : 1
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 550 Watt
Expansion/ Connectivity :
Expansion Bays Total (Free) :
4 (Total) / 4 (Free) X Hot-Swap 3.5 Lff
Expansion Slots Total (Free) :
2 (Total) / 1 (Free) X Cpu
8 (Total) / 7 (Free) X Dimm 288-Pin
3 (Total) / 3 (Free) X Pcie 3.0 X16 – Low-Profile
2 (Total) / 2 (Free) X Pcie 3.0 X8 – Low-Profile
1 (Total) / 1 (Free) X Microsd Card (Internal)
Interfaces & Ports :
2 X Lan (Gigabit Ethernet)
1 X Vga
1 X Usb 2.0 (1 In Front)
3 X Usb 3.0 (2 Rear, 1 Internal)
Dimensions & Weight :
Depth : 24.97 Inch
Width : 18.98 Inch
Height : 3.45 Inch
Weight : 36.6 Lbs
