GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 793308-B21

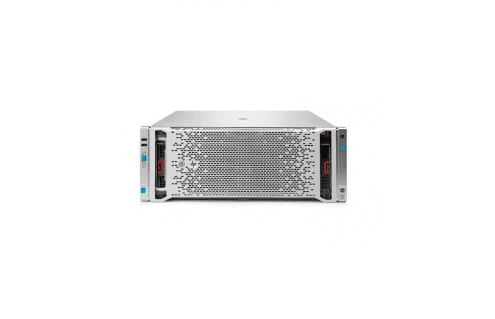

Product Name: Proliant Dl580 Gen9 – 4u Rack Mount Server(Base Model)
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5-4809v3/ 2.0ghz
Quickpath Interconnect : 6.4 Gt/S
Number Of Cores : 8 Core
64-Bit Computing : Yes
Compatible Processor Socket : Fclga2011
Installed Qty : 2
Max Supported Qty : 4
Chipset Type : Intel C602j Series
CACHE MEMORY :
Cache Memory Type : Smart Cache
Installed Size : 20mb
Cache Per Processor : 20 Mb
MEMORY :
Installed Size : 64gb (4x16gb) / 6 Tb (Max) (Installed 2 Memory Cartridges)
Technology : Ddr4 Sdram Pc4-17000r (Ddr4-2133p)
Form Factor : Dimm 288-Pin
Total Memory Slots : 96 Ddr4 Slots
STORAGE:
Hard Drive : None
Optical Drive : None
STORAGE CONTROLLERS:
Storage Controller Name : Smart Array P830i
Buffer Size : 2 Gb
Disk Drive : 12gb/S Sas / 6gb/S Sas & Sata
Sas Connectors : 2 Internal X8 Mini-Sas Double-Wide Internal
Cache Memory Speed : Ddr2-1866mhz With 72-Bit Wide Bus At 14.9 Gb/S (4 Gibytes Cache Module)
Sas Speed : 12gb/S Per Physical Link
Cache Memory : Fbwc Cache Is Required. 2gb Is Included With Bto Models. For Cto, 2gb Or 4gb Fbwc Cache Is Required.
Logical Drives Supported : Up To 64 Logical Volumes
Host Memory Addressing : 64-Bit, Supporting Greater Than 4gib Server Memory Space
Raid Support :
Raid 6, 60 (Advanced Data Guarding)
Raid 5, 50 (Distributed Data Guarding)
Raid 1, 10 (Drive Mirroring), Raid 1 Adm, 10 Adm (Advanced Data Mirroring)
Raid 0 (Striping)
