GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 793310-B21

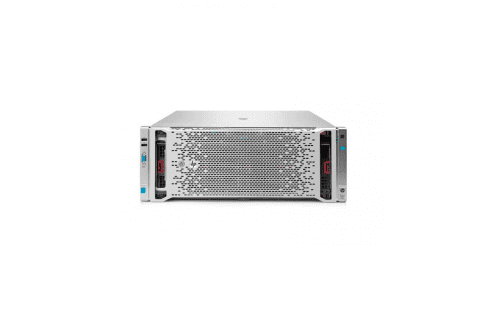

Product Name : Proliant Dl580 Gen9 – 4u Rack Mount Server (High Performance)
PROCESSOR & CHIPSET :
Cpu : Intel Xeon E7-4850v3 / 2.2 GHz
Max Turbo Speed : 2.8 GHz
Number Of Cores : 14 Core
Cpu Qty : 4
Max Cpu Qty : 4
Cpu Upgradability : Upgradable
Processor Main Features : Intel Turbo Boost Technology 2
Chipset Type : Intel C602j
CACHE MEMORY :
Installed Size : L3 Cache – 140 Mb
Cache Per Processor : 35 Mb
MEMORY :
Installed Size : 128 Gb / 6 Tb (Max)
Technology : Ddr4 Sdram
Form Factor : Dimm 288-Pin
Memory Slots: 96 x DDR4 RAM Slots
Configuration Features : 8 X 16 Gb
STORAGE:
Hard Drive : None
Optical Drive : None
STORAGE CONTROLLERS:
Type : 1 X Raid – Pcie 2.0 X4
Controller Interface Type : Sata 6gb/S / Sas 12gb/S
Storage Controller Name : Smart Array P830i With 4gb Fbwc
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
Buffer Size : 4 Gb
NETWORK & COMMUNICATION:
Interface (Bus) Type : Pci Express 2.0 X8
Ethernet Ports : 2 X 10 Gigabit Ethernet
Ethernet Controller : Hp Flexfabric 534flr-Sfp+
Data Link Protocol : 10 Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Acpi Support, Pxe Support
Compliant Standards : Ieee 802.3, Ieee 8023x, Ieee 802.3ad (Lacp), Ieee 802.3ae, Ieee 802.1ax, Ieee 802.1qbb, Ieee 802.1qaz, Ieee 802.1qau, Ieee 802.1qbg, Ieee 802.2x
POWER DESCRIPTION :
Device Type : Power Supply – Hot Plug
Power Redundancy : Yes
Installed Qty : 4
Max Supported Qty : 4
Nominal Voltage : Ac 120/230 V ( 50/60 Hz )
Power Provided : 1200 Watt.
