General information :
Manufacturer: IBM corporation
Manufacturer part number: 794572U

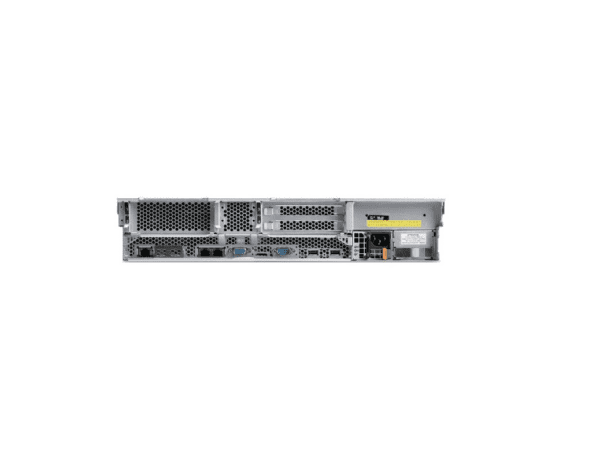

Product name: system x3650 m3 2u rack server
Processor & chipset :
Processor type : intel xeon x5675 / 3.06ghz
Max turbo speed : 3.46ghz
Multi-core technology : 6-core
64-bit computing : yes
Installed qty : 1
Max supported qty : 2
Upgradability : upgradable
Processor main features :
Intel quickpath interconnect
Intel turbo boost technology
Chipset type : intel 5520
Cache memory :
Cache memory type : l3 cache
Installed size : 12 mb
Cache per processor : 12 mb
Memory :
Installed size : 4 gb
Maximum size : 192 gb
Technology : ddr3 sdram – ecc chipkill
Memory speed : 1333 mhz
Memory specification compliance : pc3-10600
Form factor : dimm 240-pin
Features : registered, low-profile, memory mirroring
Configuration features : 1 x 4 gb
Ram supported : 192 gb – registered 48 gb – unbuffere
Storage & storage controller :
Hard disk : none
Storage controller (1st) type : 1 x serial attached scsi 2 – plug-in card – pci express 2.0 x8
Controller interface type : serial ata-300 / sas 2.0
Storage controller name : serveraid m1015
Channel qty : 8
Raid level : raid 0, raid 1, raid 5, raid 10, raid 50
Buffer size : 512 mb
Storage controller (2nd) type : 1 x serial ta – integrated
Display & graphics controllers
Graphics controller type : integrate
Graphics processor : matrox mga g200ev
Video memory : 16 mb ddr2 sdram
Network & communication :
Networking : network adapter – pci express – integrated
Ethernet ports : 2 x gigabit ethernet
Ethernet controller(s): broadcom bcm5709c
Data link protocol : ethernet, fast ethernet, gigabit ethernet
Remote management protocol : snmp 3, cim, ipmi 2.0
Remote management controller : maxim vsc452 super baseboard management controller with integrated vga controller
Features : wake on lan (wol), pxe support
Power description :
Device type : power supply – hot-plug
Power redundancy : optional
Power redundancy scheme : n+n (with optional power supply)
Installed qty : 1
Max supported qty : 2
Voltage required : ac 120/230 v ( 50/60 hz )
Power provided : 675 watt
