GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 833976-S01

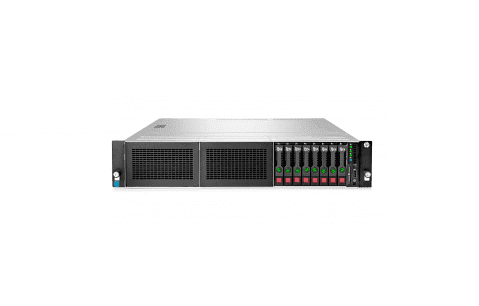

Product Name: Proliant Dl180 Gen9 – 2u Rack Mountable Server (Smart Buy Model)
PROCESSOR & CHIPSET :
CPU : Intel Xeon E5-2609v4/ 1.7 GHz
Number Of Cores : 8 Core
CPU Qty : 1
Max CPU Qty : 2
CPU Upgradability : Upgradable
Processor Main Features : Hyper-Threading Technology, Intel Turbo Boost Technology 2
Cpu Socket : Lga2011-V3 Socket
Chipset Type : Intel C610 Series
CACHE MEMORY :
Cache Memory Type : Smart Cache
Installed Size : 20mb
Cache Per Processor : 20 Mb
MEMORY :
Installed Size : 8 GB / 256 GB (MAX)
Technology : Ddr4 Sdram – Advanced Ecc
Effective Memory Speed : 1866 Mhz
Memory Specification Compliance : Pc4-19200 (2400 Mhz)
Form Factor : Dimm 288-Pin
Memory Slots: 16 x DDR4 RAM Slots
Features : Registered, Hp Smartmemory
Configuration Features : 1 X 8 Gb
Ram Supported : Pc4-19200 – 256 Gb – Registered – Ecc ¦ Pc4-19200 – 512 Gb – Load-Reduced – Ecc
STORAGE:
Hard Drive : None
Optical Drive : None
STORAGE CONTROLLERS:
Type : 1 X Raid
Controller Interface Type : Sata 6gb/S
Storage Controller Name : Hp Dynamic Smart Array B140i
Channel Qty : 10
Raid Level : Raid 0, Raid 1, Raid 5
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated Matrox G200eh2
NETWORK & COMMUNICATION :
Networking : Network Adapter – Integrated
Interface (Bus) Type : Pci Express 2.0 X2
Ethernet Ports : 2x Gigabit Ethernet
Ethernet Controller(S) : Hp Nc361i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : IEEE 802.3, IEEE 802.3U, IEEE 802.3AB, IEEE 802.1AS, IEEE 802.3AZ
POWER DESCRIPTION :
Device Type : Power Supply – Hot Plug
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V ( 50/60 Hz )
Power Provided : 550 Watt
80 Plus Certification : 80 Plus Gold
