GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 834607-001

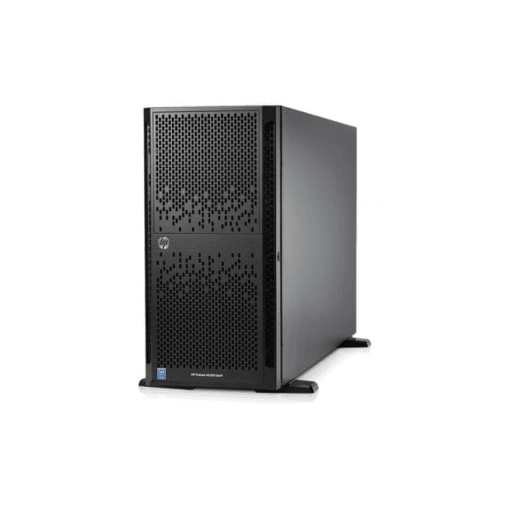

Product Name: Proliant Gen9 5u Tower Base Server
PROCESSOR & CHIPSET :
CPU : Intel Xeon E5-2609v4/ 1.7 GHz
Number Of Cores : 8 Core
CPU Qty : 1
Max CPU Qty : 2
CPU Upgradability : Upgradable
Processor Main Features : Hyper-Threading Technology, Intel Turbo Boost Technology 2
Chipset Type : Intel C610
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 20MB
Cache Per Processor : 20 MB
MEMORY :
Installed Size : 8 Gb / 256 Gb (Max)
Technology : Ddr4 Sdram – Advanced Ecc
Memory Speed : 2400 Mhz
Memory Specification Compliance : Pc4-19200
Form Factor : Dimm 288-Pin
Memory Slots : 16 x DDR4 RAM Slots
Features : Registered, Online Spare Memory, Hp Smartmemory
Configuration Features : 1 X 8 Gb
Ram Supported : Pc4-19200 – 256 GB – Load-Reduced Pc4-19200 – 256 Gb – Registered
STORAGE:
Hard Drive : None
Hdd Bays : Hot Plug 4lff Sata
Optical Drive : Dvd-Rw
STORAGE CONTROLLERS:
Type : 1 X Raid
Controller Interface Type : Sata 6gbps
Storage Controller Name : Hp Dynamic Smart Array B140i
Channel Qty : 10
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10
GRAPHICS CONTROLLERS :
Graphics Processor : Matrox G200
NETWORK & COMMUNICATION:
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : Broadcom Bcm5717
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights Out Management (Ilom)
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
POWER DESCRIPTION :
Device Type : Power Supply – Hot-Plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (With Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V ( 50/60 Hz )
Power Provided : 550 Watt
