GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 834619-S01

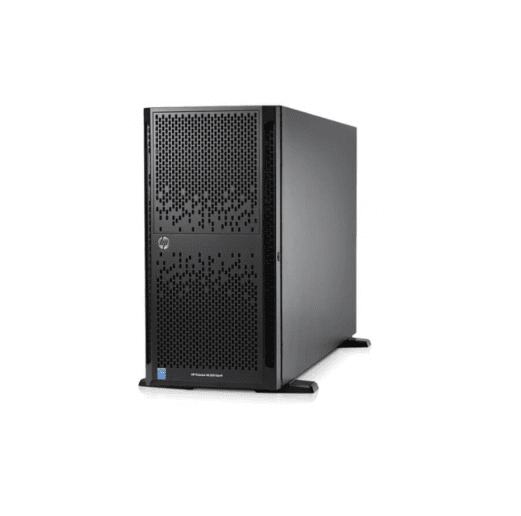

Product Name: Proliant Gen9 5u Tower Mountable Server (S-Buy)
PROCESSOR & CHIPSET :
CPU : Intel Xeon E5-2620v4 / 2.1 GHZ
Max Turbo Speed : 3.0 GHZ
Number Of Cores : 8 CORE
CPU Qty : 2
Max CPU Qty : 2
CPU Upgradability : Upgradable
Processor Main Features : Hyper-Threading Technology, Intel Turbo Boost Technology 2
Chipset Type : Intel C610
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 40mb
Cache Per Processor : 20 Mb
MEMORY :
Installed Size : 16 Gb / 256 Gb (Max)
Technology : Ddr4 Sdram – Advanced Ecc
Memory Speed : 1866 Mhz
Memory Specification Compliance : Pc4-17000 (2133 Mhz)
Form Factor : Dimm 288-Pin
Memory Slots: 16 x DDR4 RAM Slots
Features : Registered, Online Spare Memory, Quad Channel Memory Architecture, Hp Smartmemory
Configuration Features : 2 X 8 Gb
Ram Supported : Pc4-17000 – 256 Gb – Load-Reduced ¦ Pc4-17000 – 256 Gb – Registered
STORAGE:
Hard Drive : None
Optical Drive : None
STORAGE CONTROLLERS:
Storage Controller Name : Smart Array H240
Buffer Size : None
Disk Drive : 12gb/S Sas (Serial Attached Scsi), 6gb/S Sata (Serial Advanced Technology Attachment)
Sas Port Link Rate : 12gb/S Per Physical Link Supported
Architecture : Serial Attached Scsi (Sas), Serial Advanced Technology Attachment (Sata)
Sas Connectors : 2×4 Internal (Mini-Sas)
Data Transfer Method : 1.2gb/S Bandwidth Per Port For Combined Throughput Of Up To 9.6gb/S
Simultaneous Connection : 2 X 4 Sas Connectors
Port Transfer Rate : 1.2 Gb/S Per X8 Sas Port
Maximum Capacity : 144tb
Memory Addressing : 64-Bit, Supporting Servers Memory Greater Than 4gb
Raid Support : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
GRAPHICS CONTROLLERS :
Graphics Processor : No Graphics
NETWORK & COMMUNICATION:
Interface (Bus) Type : Pci Express X2
Ethernet Ports : 2x Gigabit Ethernet
Ethernet Controller : Hp 331i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
POWER DESCRIPTION :
Device Type : Power Supply – Hot Plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (With Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V ( 50/60 Hz )
Power Provided : 900 Watt
