Main Specifications:

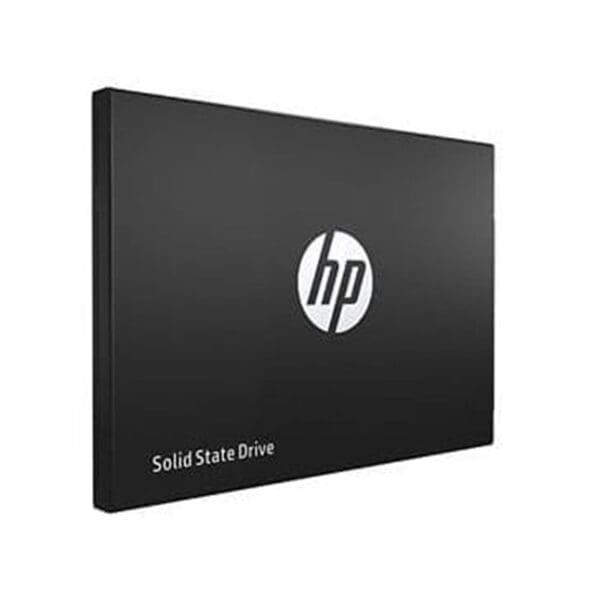

Type : Solid State Drive (SSD) – Hot Swap
Capacity : 1.92 TB
Nand Flash Memory Type : Multi-Level Cell (Mlc)
Form Factor : 2.5 inch Sff
Interface : Sata 6Gb/s
Data Transfer Rate : 600 Mbps
Features : Digitally Signed Firmware, Hpe Smartssd Wear Gauge
Dimensions (Wxdxh) : 0.3 In
Bundled With : Hpe Smart Drive Carrier
Designed For :
Proliant Dl120 Gen9 (2.5), Dl120 Gen9 Entry (2.5), Dl160 Gen9 (2.5), Dl160 Gen9 Base (2.5), Dl160 Gen9 Entry (2.5), Dl160 Gen9 Performance (2.5), Dl160 Gen9 Thoughtspot Server (2.5), Dl20 Gen9 (2.5), Dl20 Gen9 Base (2.5), Dl20 Gen9 Entry (2.5), Dl20 Gen9 Performance (2.5), Dl20 Gen9 Special Server (2.5), Ml110 Gen9 (2.5), Ml110 Gen9 Base (2.5), Ml110 Gen9 Entry (2.5), Ml150 Gen9 (2.5), Ml150 Gen9 Base (2.5), Ml150 Gen9 Entry (2.5), Ml150 Gen9 Performance (2.5), Ml30 Gen9 (2.5), Ml30 Gen9 Base (2.5), Ml30 Gen9 Performance (2.5), Ml350 Gen9 (2.5), Ml350 Gen9 Base (2.5), Ml350 Gen9 Entry (2.5), Ml350 Gen9 Performance (2.5), Xl170r Gen10 (2.5)
Performance:
Drive Writes Per Day (Dwpd) : 1
Drive Transfer Rate : 600 Mbps (External)
Internal Data Rate : 500 Mbps (Read) / 445 Mbps (Write)
4kb Random Read : 57000 Iops
4kb Random Write : 31000 Iops
Maximum 4kb Random Write : 31000 Iops
Maximum 4kb Random Read : 64000 Iops
Average Latency : 60 µs
Expansion & Connectivity:
Interfaces : 1 X Sata 6 Gb/S
Compatible Bay : 2.5 Sff
