General Information:
Type: Server

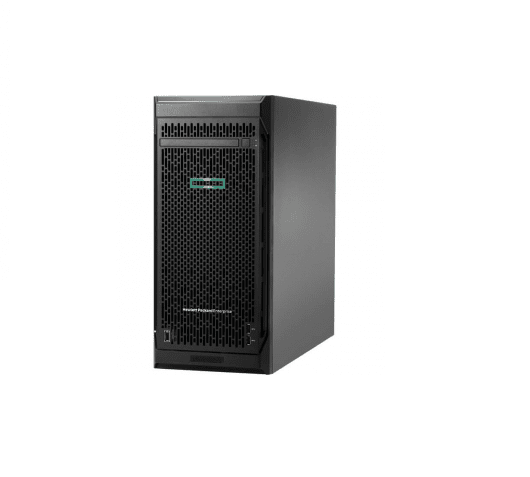

HP Proliant ML110, Gen10
Product Form Factor ; Tower – 4.5U
Server Scalability:1-way
Front Accessible Bays Qty1
Hot Swap Bays Qty : 8 Bays
Graphics Controller:
Video Memory16: MB
Video Interfaces: VGA
Hard Drive:
TypeNo HDD
Miscellaneous:
Compliant Standards PCI DSS, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
Manufacturer Selling Program HPE Smart Buy
Monitor:
Monitor Type None.
Networking:
Ethernet Ports2 x Gigabit Ethernet
Ethernet Controller HPE 368i
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller Integrated Lights-Out Advanced Management (ASIC)
Features Wake on LAN (W oL), PXE support
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az
Operating System / Software:
Software HPE I LO Standard with Intelligent Provisioning, HPE OneView Standard (free download)
Power:
Device Type Power supply – hot-plug
Installed Qty1
Nominal Voltage AC 120/230 V (50/60 Hz)
Power Provided800 Watt
80 PLUS Certification80 PLUS Platinum
Processor / Chipset:
CPU Intel Xeon Silver 4110 / 2.1 GHz
Number of Cores 8 core
CPU Qty1
Max CPU Qty1
CPU Upgradability Upgradable
Processor Main Features
RAM:
Installed Size16 GB / 192 GB (max)
Technology DDR4 SDRAM
Effective Memory Speed2400 MHz
Rated Memory Speed2400 MHz
Form Factor DIMM 288-pin
RAM Slots: 6 x DDR4 RAM Slots
Features Registered
Configuration Features1 x 16 GB
RAM SupportedPC4-21300 – 192 GB registered
Storage Controller:
Type1 x SATA
Controller Interface Type SATA 6Gb/s
Storage Controller Name HPE Smart Array S100i SR Software
Channel Qty10
RAID Level RAID 0, RAID 1, RAID 5, RAID 10
