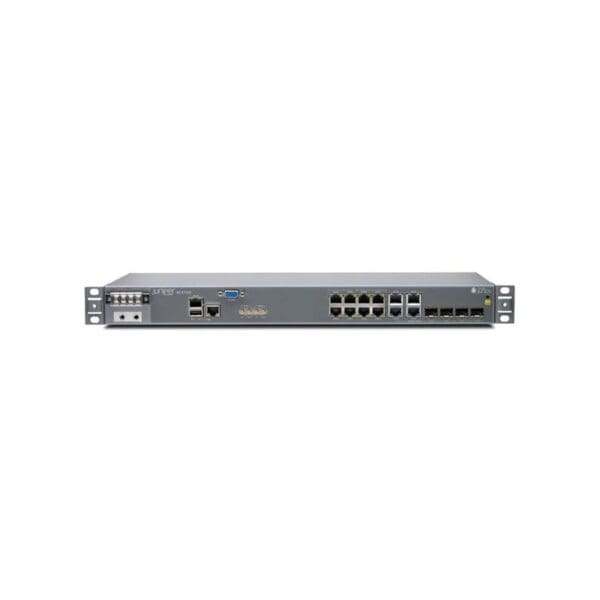

Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks ACX Series
Model :1100
Packaged Quantity :1
Modem
Type :None
Networking
Type :Router
Form Factor :Rack-mountable
Connectivity Technology :Wired
Data Link Protocol :Gigabit Ethernet, Ethernet, Fast Ethernet
Routing Protocol :MPLS
Remote Management Protocol :SNMP 2, SNMP 1, SNMP 3, CLI
Data Transfer Rate :60 GBps
Features :Call Admission Control (CAC), Class of Service (CoS), Fanless, Precision Time Protocol (PTP)
Compliant Standards :G.703, IEEE 1588-2008, MEF 14, MEF 9, MEF 21
Interface Provided
Interfaces :Management: 1 x, Serial: 1 x RS-232, Alarm: 4 x input, 8 x 10Base-T/100Base-TX/1000Base-T – RJ-45, 4 x SFP (mini-GBIC), Alarm: 4 x output
Power Device
Type :Internal power supply
Power Redundancy :Yes
Installed Qty :2
Max Supported Qty :2
Nominal Voltage :DC 24/-48/-60 V
Power Consumption Operational :40 watt
System Requirements
OS Required :JUNOS
Miscellaneous
Color Category :Gray
Height (Rack Units) :1
Compliant Standards :EN 61000-3-2, IEC 60950-1, CISPR 22 Class A, NEBS, ETS 300 753, EN 60825-1, TBR12, EN 61000-4-3, CAN/CSA C22.2 No. 60950-1, CS-03, UL 60950-1, TBR13, ETSI, EN 61000-4-4, TBR21, FCC Part 68, EN 61000-4-2, FCC Part 15 A, EN55022 Class A, EN 61000-4-11, EN 60950-1, EN 61000-4-6, EN 61000-3-3, R&TTE, VCCI Class B ITE, JATE, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight
Width :17.5 inch
Depth :9.4 inch
Height :1.7 inch
Weight :7.8 lbs
Environmental Parameters
Min Operating Temperature :-40 degree Fahrenheit
Max Operating Temperature :158 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
