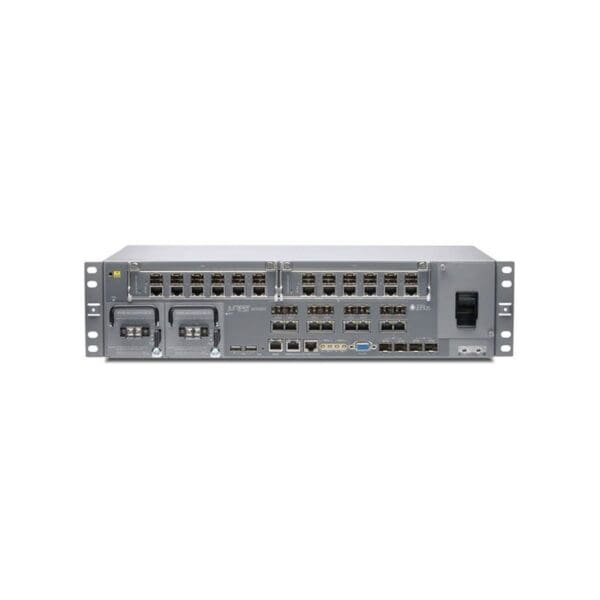

Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks ACX Series
Model :4000
Packaged Quantity :1
Modem
Type :None
Networking
Type :Router
Connectivity Technology :Wired
Data Link Protocol :10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Ethernet
Routing Protocol :MPLS
Remote Management Protocol :SNMP 1, SNMP 3, SNMP 2, CLI
Data Transfer Rate :60 GBps
Key Features :VPN support
Features :Class of Service (CoS), VPN support, High Availability, Timing support, Call Admission Control (CAC), PoE++
Compliant Standards :G.703
Expansion Slots
Expansion Slots :2 (total) / 2 (free) x Modular Interface Card (MIC)
Interface Provided
Interfaces :Alarm: 4 x output, Management: 1 x console, 6 x 10Base-T/100Base-TX/1000Base-T – RJ-45, Alarm: 4 x input, 2 x 10Gb Ethernet / 1Gb Ethernet – SFP+, Serial: 1 x RS-232, 2 x 10Base-T/100Base-TX/1000Base-T (PoE++) – RJ-45, 10 x 1000Base-X – SFP (mini-GBIC)
Power Device
Type :Internal power supply
Installed Qty :2
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Power Consumption Operational :150 watt
System Requirements
OS Required :JUNOS
Miscellaneous
Color Category :Gray
Height (Rack Units) :2.5
Compliant Standards :EN 61000-4-11, EN 61000-4-4, TBR12, EN 61000-4-2, CS-03, EN 61000-4-6, UL 60950-1, FCC Part 15 A, GR-1089-CORE, R&TTE, ETSI, EN 61000-4-5, TBR21, VCCI Class B, EN 61000-3-3, TBR13, EN 61000-4-3, EN55022 Class A, IEC 60950-1, EN 60950-1, FCC Part 68, GR-63-CORE, CB, CISPR 22 Class A, EN 61000-3-2, EN 60825-1, JATE, NEBS level 3, ETS 300 753, CAN/CSA C22.2 No. 60950-1, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight
Width :17.5 inch
Depth :9.3 inch
Height :4.3 inch
Weight :23.85 lbs
Environmental Parameters
Min Operating Temperature :-40 degree Fahrenheit
Max Operating Temperature :158 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
