Slot Provided
Free Qty : 7
Total Qty : 7
Type : Expansion slot
Networking
Form Factor : Rack-mountable
Subcategory : Network hubs and switches
Type : Switch
Miscellaneous
Color Category : Gray
Compliant Standards : ACA TS001, AS/NZ 3548 Class A, AS/NZS 3260, CISPR 22 Class A, CS-03, CSA 22.2 No. 60950, EN 60950, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN50082-1, EN55022, EN55022 Class A, EN55024, FCC CFR47 Part 15, FCC Class A certified, FCC Part 68, ICES-003 Class A, IEC 60950, JATE, NEBS level 3, UL 60950, VCCI Class A
Height (Rack Units) : 11
MTBF : 248,630 hours
Rack Mounting Kit : Included
Environmental Parameters
Humidity Range Operating : 10 – 90% (non-condensing)
Max Operating Temperature : 104 °F
Max Storage Temperature : 167 °F
Min Operating Temperature : 32 °F
Min Storage Temperature : -40 °F
Header
Brand : Cisco
Compatibility : PC
Manufacturer : CISCO DS HARDWARE DIRECT

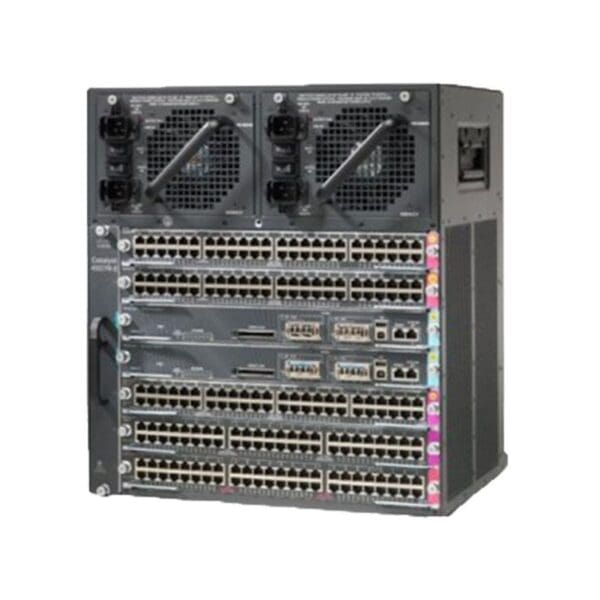

Model : C4507R
Packaged Quantity : 1
Product Line : Cisco ONE Catalyst
Product Type Switch Chassis
Power Device
Hot-Plug : Hot-plug
Installed Qty : 0
Max Supported Qty : 2
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with optional power supply)
Type : Internal power supply
Dimensions & Weight
Depth : 12.5 in
Height : 19.2 in
Weight : 44.53 lbs
Width : 17.3 in
Service & Support
Type : Limited lifetime warranty
Chassis
Installed Devices Modules Qty : 0
Supported Devices Modules Qty : 7
