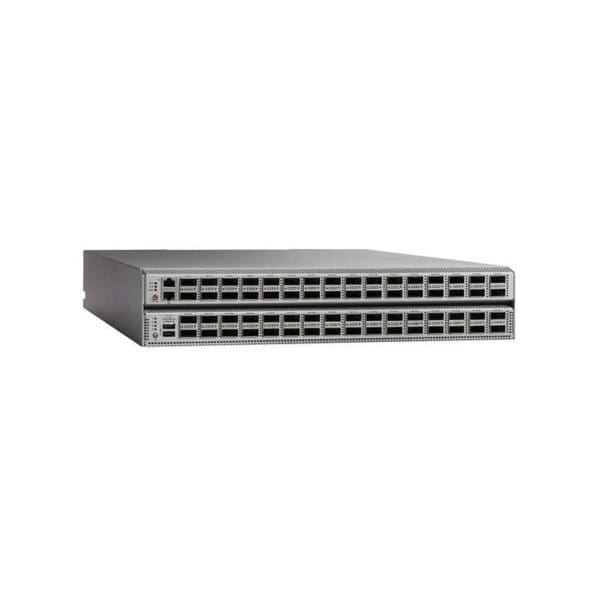

Product Line Cisco ONE Nexus
Product Series N3K
Device Type: Switch – 64 ports – L3 – managed
Enclosure Type Rack-mountable 2U
Subtype 40 Gigabit Ethernet
Ports 64 x 40 Gigabit QSFP+
Performance Switching capacity: 5.12 Tbps ¦ Forwarding performance: 3.8 Bpps
Capacity Virtual interfaces (VLANs): 4096 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Rapid Spanning Tree Protocol instances: 512 ¦ ACL entries (ingress): 7000 ¦ ACL entries (egress): 1000 ¦ Multicast entries (Layer 3): 64000 ¦ Host table entries (IPv4): 72000 ¦ QoS hardware entries: 8
MAC Address Table Size 136K entries
Jumbo Frame Support 9216 bytes
Routing Protocol RIP-2, IGMPv2, HSRP, IGMP, VRRP, PIM-SM, IGMPv3, MSDP, static IPv4 routing, static IPv6 routing, ECMP, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, HTTPS, SSH-2, CLI, SCP
Encryption Algorithm MD5
Authentication Method RADIUS, PAP, CHAP, TACACS+, MS-CHAP, Secure Shell v.2 (SSH2), LDAP, MS-CHAP v.2
Features DHCP support, load balancing, IGMP snooping, Syslog support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Weighted Random Early Detection (WRED), Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), RDMA support, Virtual Route Forwarding-Lite (VRF-Lite), static IP mode, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), Call Home function support, Class of Service (CoS), tagged VLAN, Loopback, TFTP client, FTP client, SFTP client, Virtual PortChannel (vPC) technology, DiffServ Code Point (DSCP) support, Bi-Directional (BiDi), Explicit Congestion Notification (ECN), Priority-Based Flow Control (PFC), VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Control plane protection (CoPP)
Compliant Standards IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba
RAM 8 GB
Status Indicators Status
Expansion / Connectivity
Interfaces 1 x 1000Base-T RJ-45 management ¦ 1 x serial (RS-232) RJ-45 management ¦ 2 x USB Type A ¦ 48 x 40Gbit LAN QSFP+
Power
Power Device Internal power supply – hot-plug
Installed Qty 0 (installed) / 2 (max)
Power Redundancy Optional
Miscellaneous
Included Accessories Accessory kit
Rack Mounting Kit Included
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1 Second Edition, RoHS, GB 4943, CAN/CSA C22.2 No. 60950-1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, CNS 13438(95) Class A, KN22 Class A, EN 300386, EN 55022 Class A, FCC CFR47 Part 15 A
Dimensions & Weight
Width 17.4 in
Depth 22.3 in
Height 3.5 in
Weight 32.85 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 85%
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Range Storage 5 – 95% (non-condensing)
