Interface Provided
Comments : Downlink
Connector Type : SFP+
Qty : 48 SFP+
Type : 10/25GBase-T
Comments : Uplink
Connector Type : QSFP+
Qty : 6
Type : 40Gbit LAN
Connector Type : RJ-45
Type : Management
Qty : 1
Type : USB
Qty : 4
Type : 100Gbit LAN
Type : Serial (RS-232)
Networking
Advanced Switching : Layer 3
Features : 4 fans, Access Control List (ACL) support, Ethernet Virtual Private Network (EVPN), Hot Standby Router Protocol (HSRP) support, IGMP snooping, Multiple Spanning Tree Protocol (MSTP) support, Open Shortest Path First (OSPF), Per-VLAN Rapid Spanning Tree (PVRST), Port exhaust, Source-Specific Multicast (SSM), Virtual Extensible LAN (VXLAN), VLAN support, VXLAN tunnel endpoints (VTEP) support
Form Factor : Rack-mountable
MAC Address Table Size : 96K entries
Manageable : Yes
Ports Qty : 48
Remote Management Protocol : CLI
Routing Protocol : ECMP, IGMP, MSDP, Multiprotocol BGP, RIP, RIP-2
Status Indicators : Status
Subcategory : Network hubs and switches
Subtype : 10 Gigabit Ethernet
Type : Switch
Miscellaneous
Color Category : Silver
Compliant Standards : AS/NZS 60950-1, AS/NZS CISPR22:2004 Class A, CISPR 22 Class A, CISPR 24, CNS 13438(95) Class A, CSA C22.2 No. 60950-1 Second Edition, EMC, EN 300386, EN 60950-1 Second Edition, EN55024, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15, GB 4943, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, RoHS 6/6, UL 60950-1 Second Edition, VCCI Class A
Height (Rack Units) : 1
Included Accessories : Fixed accessory kit
Rack Mounting Kit : Included
Cable
Connectivity Details Type : Console cable
Environmental Parameters
Humidity Range Operating : 5 – 95% (non-condensing)
Max Operating Temperature : 104 °F
Max Storage Temperature : 158 °F
Min Operating Temperature : 32 °F
Min Storage Temperature : -40 °F
Header

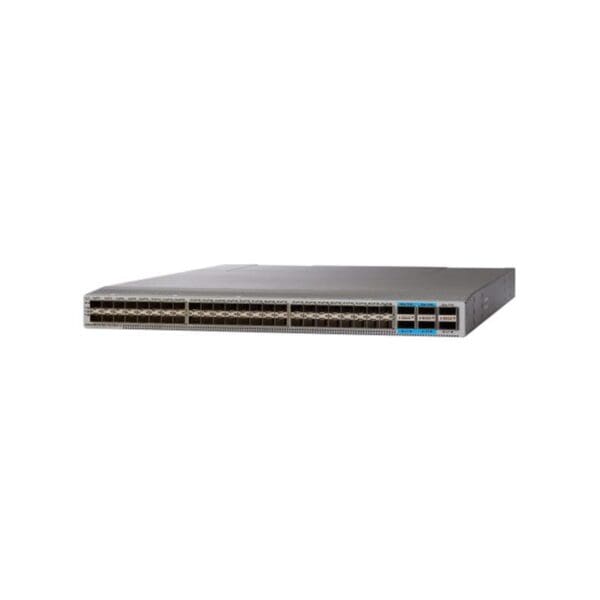

Brand : Cisco
Compatibility : PC
Manufacturer : CISCO DS HARDWARE DIRECT
Model : 92160YC-X
Packaged Quantity : 1
Product Line : Cisco ONE Nexus
Product Series N9K
Power Device
Frequency Required : 50/60 Hz
Hot-Plug : Hot-plug
Installed Qty : 2
Max Supported Qty : 2
Nominal Voltage : AC 120/230 V
Power Provided : 650 Watt
Power Redundancy : Yes
Power Redundancy Scheme : N+1
Type : Internal power supply
Service
Support Details Full Contract Period : 1 year
Support Details Service Included : Advance parts replacement
Support Details Type : Limited warranty
System Requirements
Min Operating System : Cisco NX-OS 7.0(3)I1.3
Dimensions & Weight
Depth : 22.5 in
Height : 1.7 in
Weight : 17.42 lbs
Width : 17.3 in
Service & Support
Type : 1-year warranty
Cable Details
Included Qty : 1
Capacity
Type : ACL entries (egress)
Value : 2000
Type : ACL entries (ingress)
Value : 4000
Type : ECMP groups
Value : 256
Type : Equal-Cost Multipathing (ECMP) ways
Value : 64
Type : IGMP snooping entries
Value : 32000
Type : Longest prefix match (LPM) entries (IPv4)
Value : 16000
Type : Maximum number of port channels
Value : 32
Type : Multiple Spanning Tree Protocol instances
Type : Rapid Per-VLAN Spanning Tree Plus instances
Value : 507
Type : Virtual interfaces (VLANs)
Value : 4096
Type : Virtual Routing and Forwarding (VRF) entries
Flash Memory
Installed Size : 20 MB
Performance
Type : Bandwidth
Value : 3.2 Tbps
Ports
Qty : 48
Type : 10/25 Gigabit SFP+
Ports (2nd)
Qty : 6
Type : 40 Gigabit QSFP+ (uplink)
Ports (3rd)
Qty : 4
Type : 100 Gigabit QSFP
RAM
Installed Size : 16 GB
