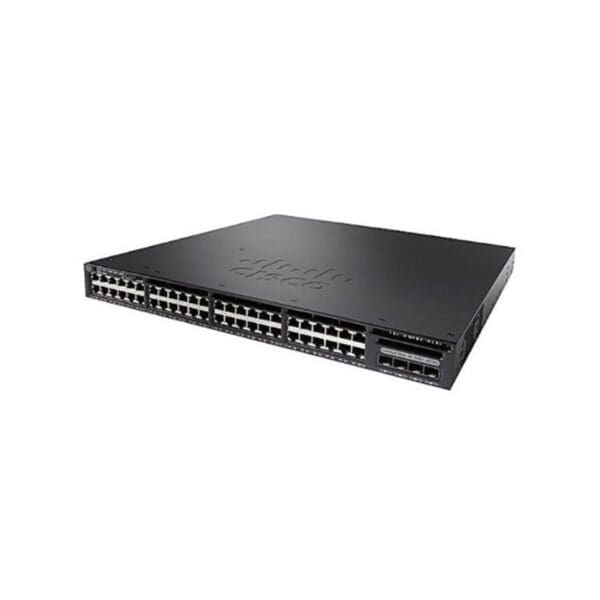

Product Line Cisco ONE Catalyst
Product Series C1-WS3650
Device Type; Switch – 48 ports – L3 – managed – stackable
Enclosure Type: Desktop, rack-mountable 1U
Subtype; Gigabit Ethernet
Ports: 36 x 10/100/1000 (UPOE) + 12 x 100/1000/2.5G/5G/10G (UPOE) + 8 x 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE): UPOE
PoE Budget: 660 W
Performance: Switching capacity: 472 Gbps ¦ Forwarding performance: 351.19 Mpps ¦ Stacking bandwidth: 160 Gbps
Capacity: IPv4 routes: 24000 ¦ NetFlow entries: 24000 ¦ Virtual interfaces (VLANs): 4094 ¦ Switched virtual interfaces (SVIs): 1000
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 9198 bytes
Routing Protocol: RIP-1, RIP-2, static IP routing, RIPng
Authentication Method: Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features: Full duplex capability, layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Cisco StackWise Technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LLDP support, Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Strict Priority Queuing (SPQ), Class of Service (CoS), Flexible NetFlow (FNF), DiffServ Code Point (DSCP) support
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
RAM: 4 GB
Flash Memory: 4 GB
Status Indicators: Port transmission speed, port duplex mode, system, active, status, PoE
