General

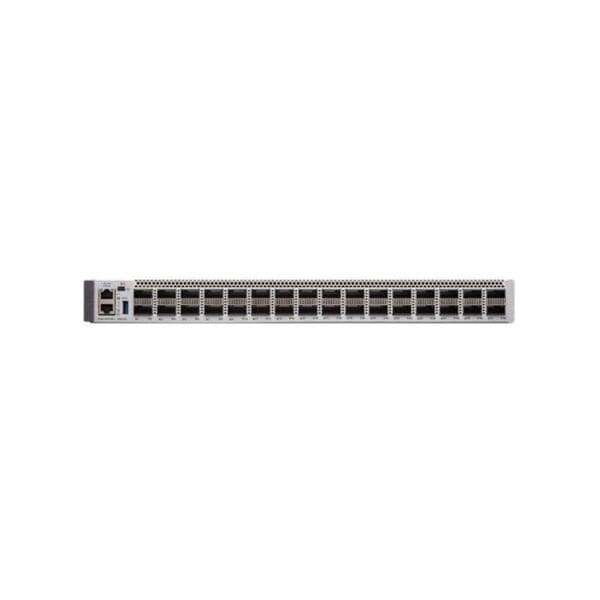

Device Type Switch – 32 ports – L3 – managed – stackable
Enclosure Type Rack-mountable 1U
Subtype 40 Gigabit Ethernet
Ports 32 x 40 Gigabit QSFP+
Performance Switching capacity: 3.2 Tbps ¦ Forwarding rate: 1 Bpps
Capacity Direct IPv4 routes: 212000 ¦ Indirect IPv4 routes: 212000 ¦ ARP entries: 90000 ¦ Indirect IPv6 routes: 212000 ¦ Direct IPv6 routes: 212000 ¦ IPv4 routes (Multicast): 32000 ¦ IPv6 routes (Multicast): 32000 ¦ ACL scale entries: 16000 ¦ Security ACL scale: 27000 ¦ FNF entries: 98000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 4000
MAC Address Table Size 82K entries
Jumbo Frame Support 9216 bytes
Routing Protocol OSPF, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm 256-bit AES
Features DHCP support, NAT support, IPv6 support, Non-Stop Forwarding (NSF), Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), MLD snooping, Non-Stop Routing (NSR), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Maximum Likelihood Demodulation (MLD), 802.1x authentication, integrated Wireshark, Ethernet over MPLS (EoMPLS), Private VLAN, Zero-touch provisioning (ZTP), CoAP support, secure boot, Switched Port Analyzer (SPAN), First Hop Security (FHS)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3ba
Processor 1: 2.4 GHz
RAM 16 GB
Flash Memory 16 GB
Built-in Devices RFID tag
Status Indicators Status
Expansion / Connectivity
Interfaces 32 x 40GBase-X QSFP+ ¦ 2 x USB 3.0
Power
Power Device Internal power supply – hot-plug
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1
Power Provided 650 Watt
Voltage Required AC 120/230 V (50 – 60 Hz)
