Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco

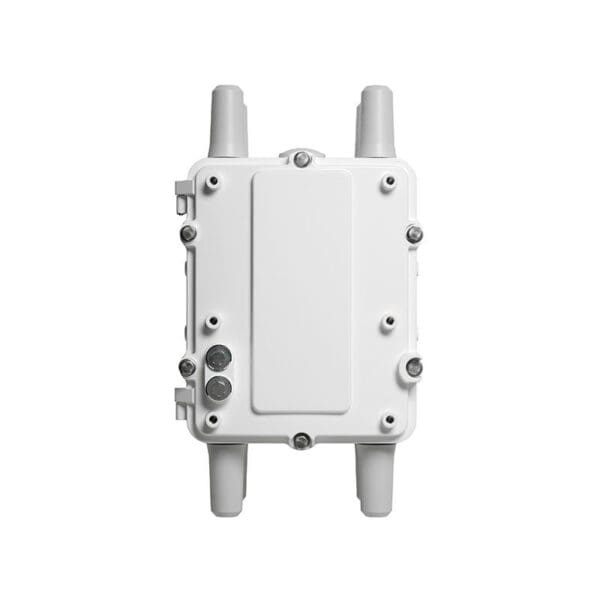

Model :1240
Packaged Quantity :1
Networking
Type :Router
Form Factor :Pole-mountable
Modular :Modular
Connectivity Technology :Wired, Wireless
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Wireless Protocol :802.11b/g/n
Routing Protocol :IGMPv3, MLDv2, OSPFv2, OSPFv3, Static IPv4 routing, Static IPv6 routing
Network / Transport Protocol :DHCP, DNS, IPSec, NTP, TCP/IP, UDP/IP
Remote Management Protocol :SNMP 1, SNMP 2, SNMP 3
Key Features :USB port, VPN support
Features :IPv6 support, MPLS support, Pole mountable, Quality of Service (QoS), Syslog support, VLAN support, VPN support
Compliant Standards :IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.15.4, IEEE 802.16e, IEEE 802.1x
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x CompactFlash, 2 (total) / 2 (free) x SFP (mini-GBIC), 4 (total) / 4 (free) x expansion slot
Interface Provided
Interfaces :4 x 10Base-T/100Base-TX – RJ-45, Alarm: 2 x input, Alarm: 2 x output, Serial: 1 x auxiliary – RJ-45, Serial: 2 x, USB: 2 x 4 pin USB Type A
Power Device
Nominal Voltage :AC 120/230 V
Power Consumption Operational :75 watt
Miscellaneous
Encryption Algorithm :128-bit AES, WPA2
Authentication Method :CHAP
Compliant Standards :AS/NZ 3548 Class A, AS/NZS 60950-1, BSMI CNS 13438, CAN/CSA C22.2 No. 60950-1, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, EN 300 386, EN 60950-1, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-2, EN300-386, EN50082-1, EN55022 Class A, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1, UL 60950-1 Second Edition, VCCI V-3
Dimensions & Weight
Width :9.7 inch
Depth :8.5 inch
Height :11.3 inch
Weight :22.93 lbs
Environmental Parameters
Min Operating Temperature :-40 degree Fahrenheit
Max Operating Temperature :158 degree Fahrenheit
