Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks MX-series

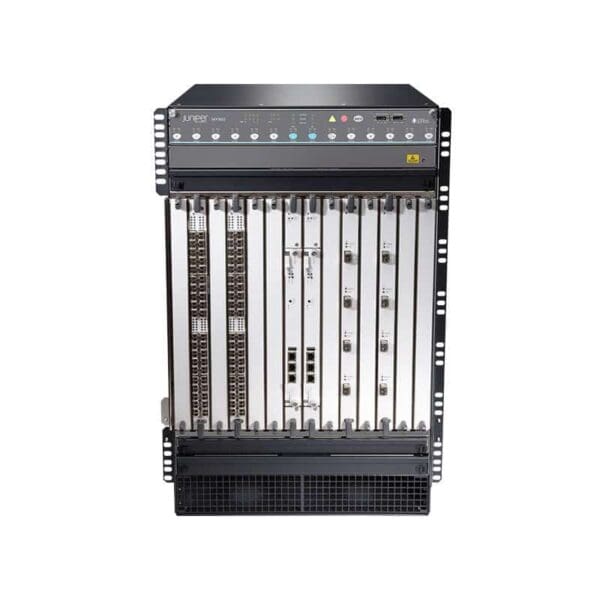

Model :MX960
Packaged Quantity :1
Chassis
Built-in Devices :Midplane
Installed Devices / Modules Qty :0
Supported Devices / Modules Qty :14
Performance
Performance :Switching capacity: 9.92 Tbps, Per-slot switching capacity: 480 Gbps
Networking
Type :Modular expansion base
Form Factor :Rack-mountable
Modular :Modular
Connectivity Technology :Wired
Data Link Protocol :Ethernet
Routing Protocol :MPLS, GRE, BGP
Remote Management Protocol :SNMP 3, HTTP, SNMP 2
Key Features :Firewall, VPN support
Features :MPLS VPN, High Availability, Virtual Chassis technology, Switch Fabric Element Redundancy, IPv6 support, Firewall protection, MPLS Fast Reroute (FRR), VLAN support, Quality of Service (QoS), IPv4 support, Intrusion Prevention System (IPS), VPN support
Expansion Slots
Expansion Slots :14 (total) / 14 (free) x expansion slot
OS Provided
Type :JUNOS
Power Device
Type :Internal power supply
Power Redundancy :Optional
System Requirements
OS Required :JUNOS
Miscellaneous
Color Category :Black
Height (Rack Units) :16
Compliant Standards :EN55022 Class A, VCCI Class A, FCC Part 15 A, EN 61000-3-3, EN 61000-3-2, UL 1950 Third Edition, GR-63-CORE, EN 61000-4-5, ETSI, EN 61000-4-4, GR-1089-CORE, EN 60825-1, EN 61000-4-6, EN 61000-4-2, EN 60950, CSA C22.2 No. 60950-00, EN 61000-4-11, EN 61000-4-3, AS/NZS 3548 Class A
Dimensions & Weight
Width :17.5 inch
Depth :23.5 inch
Height :27.8 inch
