Product Line Security Router
Product Series Cisco 890
Product Model CISCO891

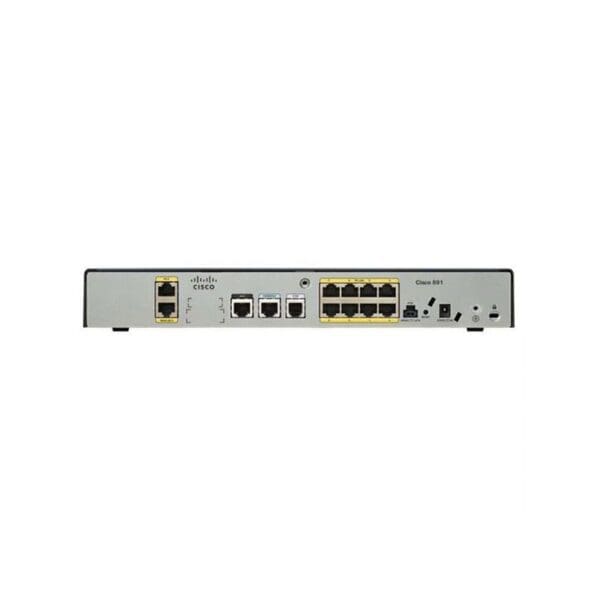

Product Description: Cisco 891 Gigabit Ethernet Security Router – router
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: CISCO891-K9
Product Type: Router + 8-port switch (integrated)
Form Factor: External
Dimensions (WxDxH): 32.5 cm x 24.9 cm x 4.4 cm
DRAM Memory: 512 MB (installed) / 768 MB (max) – DDR2 SDRAM
Flash Memory: 256 MB (installed) / 256 MB (max)
Routing Protocol: OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, GRE
Data Link Protocol: Ethernet, Fast Ethernet
Network / Transport Protocol: L2TP, IPSec
Remote Management Protocol: Telnet, SNMP 3, HTTP, HTTPS, SSH
Features
Cisco IOS Advanced IP services , VPN support, VLAN support, auto-uplink (auto MDI/MDI-X),
Stateful Packet Inspection (SPI), MAC address filtering, Class-Based Weighted Fair Queuing (CBWFQ),
Weighted Fair Queuing (WFQ), Access Control List (ACL) support, Quality of Service (QoS), DHCP server,
DNS proxy
Compliant Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x
Power
AC 120/230 V ( 50/60 Hz )
