Manufacturer :Netscreen
Brand :Juniper, Juniper Networks

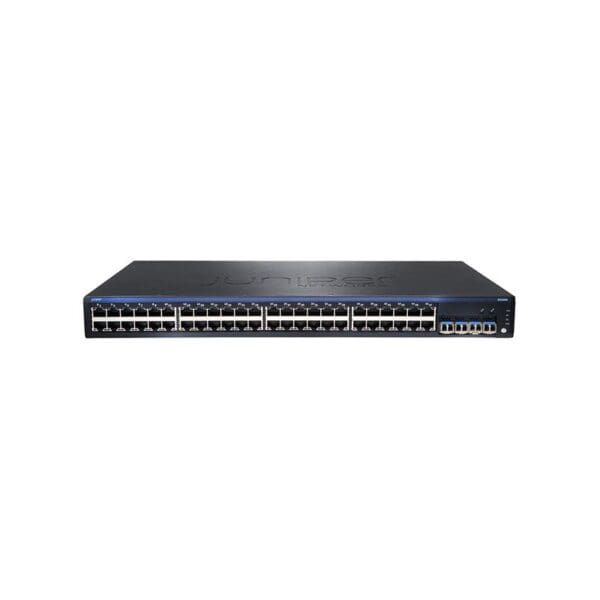

Product Line :Juniper Networks EX 2200
Model :48T
Packaged Quantity :1
Chassis
Built-in Devices :Status LCD
Processor
Clock Speed :800 megahertz
RAM
Installed Size :512 megabyte
Flash Memory
Installed Size :1 GB, 1 GB
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :Gigabit Ethernet
Form Factor :Desktop
Ports Qty :48
Advanced Switching :Layer 3
Routing Protocol :RIP-2, IGMP, RIP-1
MAC Address Table Size :8K entries
Manageable :Yes
Remote Management Protocol :Telnet, RMON 3, SNMP 2c, SNMP 1, SNMP 3, RMON 9, HTTP, RMON 1, TFTP, SSH-2, RMON 2, HTTPS
Status Indicators :LCD display
Features :Auto-uplink (auto MDI/MDI-X), DiffServ support, Layer 2 switching, Jumbo Frames support, Redundant trunk group (RTG), Quality of Service (QoS), DoS attack prevention, DHCP server, SNTP support, Per-VLAN Spanning Tree (PVST), Layer 3 switching, ARP support, Multiple Spanning Tree Protocol (MSTP) support, Rapid Spanning Tree Protocol (RSTP) support, Temperature sensor, RARP support, Store and forward, BOOTP support, Trivial File Transfer Protocol (TFTP) support, Time Domain Reflectometry (TDR), Flow control, IGMP snooping, VLAN support
Compliant Standards :IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.3ab, IEEE 802.1D, IEEE 802.1x, IEEE 802.3u, IEEE 802.3z, IEEE 802.1w, IEEE 802.1Q, IEEE 802.3, IEEE 802.1p, IEEE 802.1ab (LLDP), IEEE 802.3x
Ports
Qty :48
Type :10/100/1000
Ports (2nd)
Qty :4
Type :SFP (mini-GBIC)
Interface Provided
Interfaces :1 x management, 48 x 1000Base-T RJ-45, 4 x SFP (mini-GBIC)
Power Device
Type :Internal power supply
Miscellaneous
Height (Rack Units) :1
Authentication Method :TACACS+, Extensible Authentication Protocol (EAP), RADIUS
Compliant Standards :RoHS 6/6, CSA C22.2 No. 60065, VCCI Class A ITE, UL 60950-1, cUL, UL, CISPR 22 Class A, EN300-386, EN55024, EN 300 386
Dimensions & Weight
Width :17.4 inch
Depth :10 inch
Height :1.8 inch
Weight :7.94 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :113 degree Fahrenheit
Humidity Range Operating :10 – 85%
