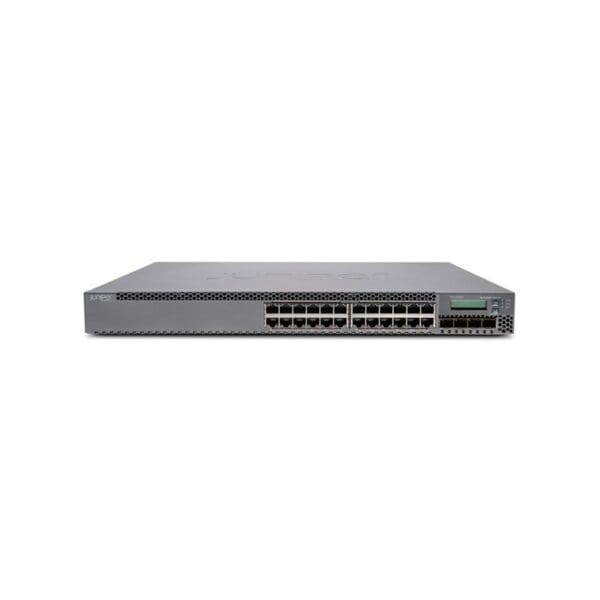

Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks EX 3300
Model :24T
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Processor
Installed Qty :1
Manufacturer :ARM
Clock Speed :1 GHZ
RAM
Installed Size :1 GB
Flash Memory
Installed Size :1 GB, 1 GB
Capacity
Capacity :IGMP snooping entries: 3000, Virtual interfaces (VLANs): 4096
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :Gigabit Ethernet
Form Factor :Desktop
Stackable :Stackable
Max Units In A Stack :6
Ports Qty :24
Routing Protocol :RIP-2, Static IPv4 routing, RIP-1
MAC Address Table Size :16K entries
Jumbo Frame Support :9216 bytes
Remote Management Protocol :RMON 9, SSH-2, SNMP 1, SSH, TFTP, HTTP, Telnet, RMON 1, SNMP 2c, RMON 2, RMON 3, SNMP 3
Status Indicators :LCD display
Features :RARP support, Store and forward, Quality of Service (QoS), IPv4 support, DiffServ support, VLAN Stacking, Front to back airflow, Auto-uplink (auto MDI/MDI-X), Flow control, Link Aggregation Control Protocol (LACP), Temperature sensor, BOOTP support, DHCP server, DoS attack prevention, Per-VLAN Spanning Tree Plus (PVST+), DHCP snooping, Spanning Tree Protocol (STP) support, SNTP support, LLDP support, ARP support, Multiple Spanning Tree Protocol (MSTP) support, Rapid Spanning Tree Protocol (RSTP) support, VLAN support, Time Domain Reflectometry (TDR), IPv6 support
Compliant Standards :IEEE 802.3z, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.3ab, IEEE 802.1x, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3at, IEEE 802.1p, IEEE 802.1ab (LLDP), IEEE 802.3u, IEEE 802.3af, IEEE 802.3, IEEE 802.1w
Ports
Qty :24
Type :10/100/1000
Ports (2nd)
Qty :4
Type :10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
Interface Provided
Interfaces :4 x SFP/SFP+, 24 x 1000Base-T RJ-45
Power Device
Type :Internal power supply
Nominal Voltage :AC 120/230 V
Power Consumption Operational :100 watt
Miscellaneous
Height (Rack Units) :1
Encryption Algorithm :MD5, TLS, TTLS, PEAP
Authentication Method :Extensible Authentication Protocol (EAP), Secure Shell v.2 (SSH2), TACACS+, RADIUS
Dimensions & Weight
Width :17.2 inch
Depth :12.2 inch
Height :1.7 inch
Weight :11.68 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :113 degree Fahrenheit
Min Storage Temperature :-40 degree Fahrenheit
Max Storage Temperature :158 degree Fahrenheit
Humidity Range Operating :10 – 85% (non-condensing)
Humidity Range Storage :0 – 95% (non-condensing)
