Manufacturer :Netscreen
Brand :Juniper, Juniper Networks

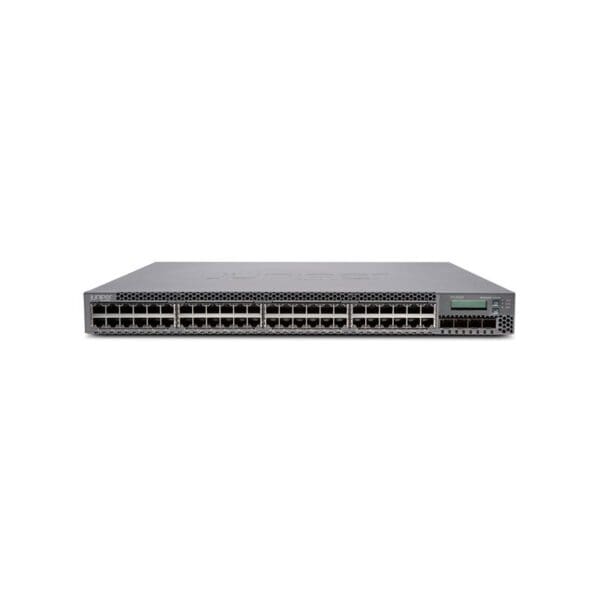

Product Line :Juniper Networks EX 3300
Model :48T
Packaged Quantity :1
Chassis
Airflow Direction :Back to front airflow
Processor
Installed Qty :1
Manufacturer :ARM
Clock Speed :1 GHZ
RAM
Installed Size :1 GB
Flash Memory
Installed Size :1 GB, 1 GB
Capacity
Capacity :IGMP snooping entries: 3000, Virtual interfaces (VLANs): 4096
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :Gigabit Ethernet
Form Factor :Desktop
Stackable :Stackable
Max Units In A Stack :6
Ports Qty :48
Routing Protocol :Static IPv4 routing, RIP-1, RIP-2
MAC Address Table Size :16K entries
Jumbo Frame Support :9216 bytes
Remote Management Protocol :RMON 3, SNMP 2c, RMON 1, SNMP 3, SSH, RMON 2, TFTP, SNMP 1, SSH-2, Telnet, HTTP, RMON 9
Status Indicators :LCD display
Features :Auto-uplink (auto MDI/MDI-X), DHCP server, DHCP snooping, VLAN Stacking, IPv4 support, DiffServ support, Link Aggregation Control Protocol (LACP), Back to front airflow, Store and forward, RARP support, BOOTP support, Rapid Spanning Tree Protocol (RSTP) support, Temperature sensor, VLAN support, Spanning Tree Protocol (STP) support, Quality of Service (QoS), Multiple Spanning Tree Protocol (MSTP) support, DoS attack prevention, Flow control, IPv6 support, LLDP support, Per-VLAN Spanning Tree Plus (PVST+), Time Domain Reflectometry (TDR), SNTP support, ARP support
Compliant Standards :IEEE 802.1w, IEEE 802.1p, IEEE 802.3af, IEEE 802.1D, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3, IEEE 802.1Q, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3u
Ports
Qty :24
Type :10/100/1000
Ports (2nd)
Qty :4
Type :10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
Interface Provided
Interfaces :48 x 1000Base-T RJ-45, 4 x SFP/SFP+
Power Device
Type :Internal power supply
Nominal Voltage :AC 120/230 V
Power Consumption Operational :100 watt
Miscellaneous
Height (Rack Units) :1
Encryption Algorithm :TTLS, MD5, TLS, PEAP
Authentication Method :TACACS+, RADIUS, Extensible Authentication Protocol (EAP), Secure Shell v.2 (SSH2)
Dimensions & Weight
Width :17.2 inch
Depth :12.2 inch
Height :1.7 inch
Weight :10.8 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :113 degree Fahrenheit
Min Storage Temperature :-40 degree Fahrenheit
Max Storage Temperature :158 degree Fahrenheit
Humidity Range Operating :10 – 85% (non-condensing)
Humidity Range Storage :0 – 95% (non-condensing)
