Manufacturer :Netscreen
Brand :Juniper, Juniper Networks

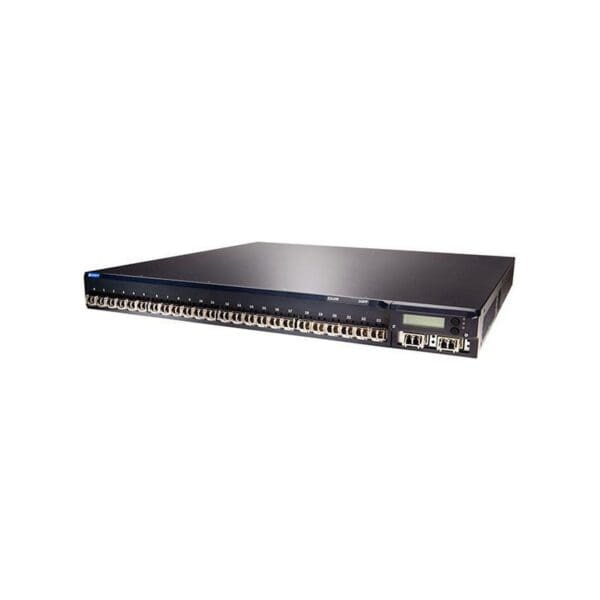

Product Line :Juniper Networks EX 4200
Model :24F
Packaged Quantity :1
Chassis
Built-in Devices :Status LCD
Processor
Type :PowerPC
Clock Speed :1 GHZ
RAM
Installed Size :1 GB
Flash Memory
Installed Size :1 GB, 1 GB
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :Gigabit Ethernet
Form Factor :Desktop
Stackable :Stackable
Max Units In A Stack :10
Advanced Switching :Layer 3
Routing Protocol :RIP-2, RIP-1, IGMPv3, IGMP, OSPF, IGMPv2, BGP, PIM-SM, Policy-based routing (PBR), Static IP routing, IS-IS, VRRP
MAC Address Table Size :24K entries
Manageable :Yes
Remote Management Protocol :HTTP, RMON 9, HTTPS, SNMP 2, RMON 1, SNMP 1, RMON, SNMP 3, RMON 3, SSH-2, RMON 2
Power Over Ethernet (PoE) :PoE
Status Indicators :LCD display
Features :DHCP proxy, Syslog support, Layer 3 switching, ARP support, Redundant trunk group (RTG), High Availability, Non-Stop Routing (NSR), Graceful Route Engine Switchover (GRES), VLAN support, Store and forward, Virtual Chassis technology, DoS attack prevention, DHCP support, IPv6 support, 256-bit encryption, Quality of Service (QoS), DHCP server, RADIUS support, Routing, Layer 2 switching, Jumbo Frames support, IGMP snooping, Time Domain Reflectometry (TDR), Auto-uplink (auto MDI/MDI-X), Temperature sensor, Hot swap module replacement, DHCP snooping, Power over Ethernet (PoE), Non-Stop Bridging (NSB), MPLS support, Dynamic ARP Inspection (DAI)
Compliant Standards :IEEE 802.1p, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3af, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1D
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x expansion slot
Interface Provided
Interfaces :24 x SFP (mini-GBIC), 1 x network stack device, 1 x management
Software
Type :Juniper NetScreen-Security Manager
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Installed Qty :1
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Power Consumption Operational :320 watt
Miscellaneous
TAA Compliant :Yes
Height (Rack Units) :1
Encryption Algorithm :TLS, TTLS, PEAP, MD5
Authentication Method :RADIUS, TACACS+, Extensible Authentication Protocol (EAP), Secure Shell v.2 (SSH2)
Compliant Standards :VCCI Class A ITE, EN300-386, cUL, CSA 22.2 No. 60950, CISPR 22 Class A, UL 60950-1, EN55024, IEC 60950-1, EN 60950-1, ICES-003 Class A, FCC CFR47 Part 15, RoHS 5/6, EN55022 Class A, TUV GS, EN 300 386
Dimensions & Weight
Width :17.4 inch
Depth :16.4 inch
Height :1.7 inch
Weight :16.09 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :113 degree Fahrenheit
Humidity Range Operating :10 – 85%
