Manufacturer :Netscreen
Brand :Juniper, Juniper Networks

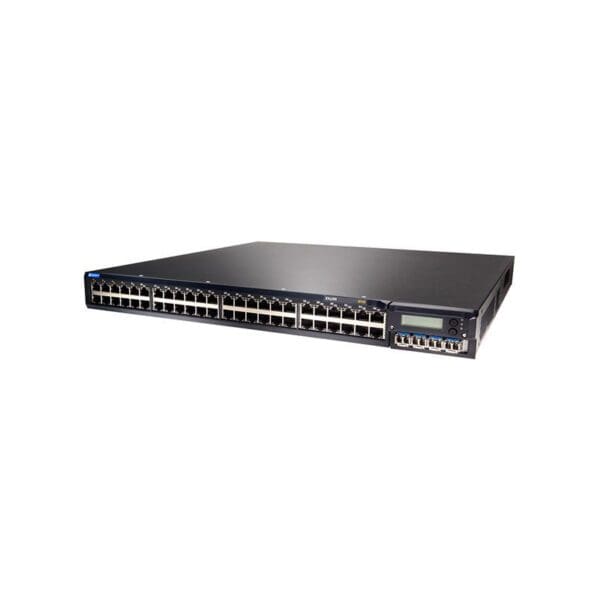

Product Line :Juniper Networks EX 4200
Model :48PX
Packaged Quantity :1
Chassis
Built-in Devices :Status LCD
Processor
Type :PowerPC
Clock Speed :1 GHZ
RAM
Installed Size :1 GB
Flash Memory
Installed Size :1 GB, 1 GB
Performance
Performance :Switching capacity: 136 Gbps, Throughput: 101 Mpps, Aggregate switching capacity: 264 Gbps
Capacity
Capacity :ARP entries: 16000, ACL entries: 7000
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :Gigabit Ethernet
Form Factor :Desktop
Stackable :Stackable
Max Units In A Stack :10
Ports Qty :48
Advanced Switching :Layer 3
Routing Protocol :IGMPv2, IS-IS, IGMP, MLD, OSPF, RIPng, RIP-2, MLDv2, MPLS, PIM-SM, BGP-4+, OSPFv3, Static IP routing, BGP, Policy-based routing (PBR), RIP-1, IGMPv3, VRRP
MAC Address Table Size :32K entries
Jumbo Frame Support :9216 bytes
Manageable :Yes
Remote Management Protocol :HTTP, RMON 9, SSH, RMON, SNMP 2, RMON 1, HTTPS, RMON 2, SNMP 1, CLI, SNMP 3, SSH-2, RMON 3
Power Over Ethernet (PoE) :PoE+
Status Indicators :LCD display
Features :RADIUS support, Quality of Service (QoS), DHCP snooping, Per-VLAN Spanning Tree Plus (PVST+), VLAN support, DDos attack prevention, Time Domain Reflectometry (TDR), Bidirectional Forwarding Detection (BFD), Syslog support, sFlow, MPLS support, Layer 3 switching, Routing, Non-Stop Routing (NSR), DHCP support, High Availability, Access Control List (ACL) support, Dynamic ARP Inspection (DAI), DoS attack prevention, Graceful Route Engine Switchover (GRES), Jumbo Frames support, IGMP snooping, Hot swap module replacement, Temperature sensor, DHCP server, Generic VLAN Registration Protocol (GVRP), IPv6 support, Auto-uplink (auto MDI/MDI-X), PoE+, Layer 2 switching, DHCP proxy, Non-Stop Bridging (NSB), Virtual Chassis technology, Store and forward, GRE tunneling, MLD snooping, LLDP support, Redundant trunk group (RTG), ARP support
Compliant Standards :IEEE 802.1ag, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.3u, IEEE 802.1ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3z, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.3ah, MEF 9, IEEE 802.3, IEEE 802.1D, IEEE 802.3ab, IEEE 802.1ak, IEEE 802.1p
Ports
Qty :48
Type :10/100/1000 (PoE+)
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x expansion slot
Interface Provided
Interfaces :48 x 10Base-T/100Base-TX/1000Base-T – RJ-45 PoE+, 1 x console management, 1 x network stack device
Cable Details
Cables Included :1 x stacking cable – 1.6 ft
Software
Type :Juniper NetScreen-Security Manager
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Power Redundancy Scheme :1+1 (with optional power supply)
Installed Qty :1
Max Supported Qty :2
Power Provided :930 watt
Nominal Voltage :AC 120/230 V
Miscellaneous
TAA Compliant :Yes
Height (Rack Units) :1
Encryption Algorithm :PEAP, MD5, TTLS, TLS
Authentication Method :RADIUS, Extensible Authentication Protocol (EAP), TACACS+, Secure Shell v.2 (SSH2)
Compliant Standards :UL 60950-1, cUL, EN55024, ICES-003 Class A, VCCI Class A, CISPR 22 Class A, CAN/CSA C22.2 No. 60950-1, IEC 60950-1, FIPS 140-2 Level 1, FCC CFR47 Part 15, EN 60950-1, TUV GS, RoHS 5/6, EN300-386, EN55022 Class A, CAN/CSA-C22.2 No. 60950-1, EN 300 386
Dimensions & Weight
Width :17.4 inch
Depth :16.4 inch
Height :1.7 inch
Weight :18.98 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :113 degree Fahrenheit
Humidity Range Operating :10 – 85%
