Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks EX Series

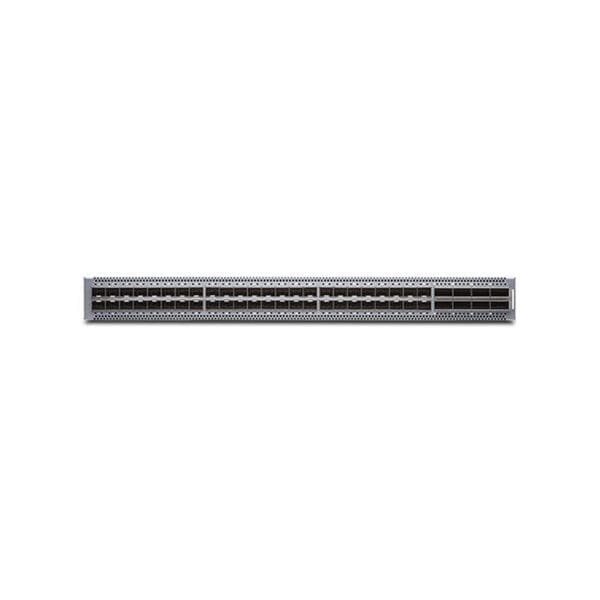

Model :EX4650-48Y
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Processor
Installed Qty :1
Manufacturer :Intel
Clock Speed :2.3 GHZ
RAM
Installed Size :16 GB
Flash Memory
Installed Size :64 GB, 64 GB
Performance
Performance :Switching capacity: 1.49 Bpps, Switching capacity: 2 Tbps
Capacity
Capacity :Queues per port: 10, Maximum member ports per LAG: 64, IPv6 routes (Multicast): 52000, Mirroring destination VLANs per switch: 4, Firewall egress filters: 512, IPv4 routes (Multicast): 104000, IPv4 prefixes (Unicast): 360000, Virtual interfaces (VLANs): 4093, IPv4 routes (Unicast): 208000, IPv6 routes (Unicast): 104000, IPv6 prefixes (Unicast): 170000, ECMP paths: 64, Link aggregation groups: 80, Firewall ingress filters: 1500, Maximum number of mirroring sessions: 4, VLAN Spanning Tree Protocol instances: 509, Mirroring destination ports per switch: 4, Multiple Spanning Tree Protocol instances: 64, ARP entries: 64000
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :25 Gigabit Ethernet
Form Factor :Rack-mountable
Stackable :Stackable
Ports Qty :48
Advanced Switching :Layer 3
Routing Protocol :IS-IS, MPLS, Static IPv6 routing, IGMP, BGP, PIM-SM, IGMPv2, PIM-SSM, IGMPv3, RIP-2, RIP, Static IPv4 routing, MSDP, CIDR, PIM-DM, RIP-1, RSVP, OSPFv2, VRRP, OSPF, Bidirectional Forwarding Detection (BFD)
MAC Address Table Size :288K entries
Jumbo Frame Support :9216 bytes
Manageable :Yes
Remote Management Protocol :Telnet, SNMP 3, HTTP, SNMP 1, SSH, SSH-2, RMON, CLI, SNMP 2, OVSDB
Features :Zero-touch provisioning (ZTP), TCP/UDP port setting, Uplink Failure Detection (UFD), Routed VLAN Interface (RVI), Quality of Service (QoS), Weighted Random Early Detection (WRED), Trivial File Transfer Protocol (TFTP) support, MPLS LSR support, IPv6 support, Ethernet Virtual Private Network (EVPN), Multichassis link aggregation (MC-LAG), Weighted Tail Drop (WTD), LDP-based signaling of LSPs, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, Storm Control, Multicast Source Discovery Protocol (MSDP), IGMP filtering, Private VLAN, Priority-Based Flow Control (PFC), Python runtime, Bidirectional Forwarding Detection (BFD), RSVP-based signaling of LSPs, IPv4 support, Beacon LED, Bridge protocol data unit (BPDU), Spanning Tree Protocol (STP) support, VLAN trunking, Link Aggregation Group (LAG), Virtual Extensible LAN (VXLAN), Built-in DIP switch, Link Aggregation, Link Aggregation Control Protocol (LACP), VLAN Spanning Tree Protocol (VSTP), Cut-through, ARP support, sFlow v5, Port-based VLAN, Static label-switched paths (LSPs), Traffic mirroring, DHCP snooping, Management Information Base (MIB), MAC based VLAN, Remarking of bridged packets, Junos XML management protocol, Image rollback, Front to back airflow, 4+1 redundant fans, Store and forward, Rapid Spanning Tree Protocol (RSTP) support, IGMP snooping, DHCP relay, Class of Service (CoS), LDP tunneling (LDP over RSVP), Multihoming, Static routing
Compliant Standards :IEEE 802.1D, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1Qbb, Shaped Deficit Weighted Round-Robin (SDWRR), IEEE 802.1Qaz, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.1w
Ports
Qty :48
Type :1/10/25 Gigabit SFP28
Ports (2nd)
Qty :8
Type :40/100 Gigabit QSFP28
Interface Provided
Interfaces :1 x USB 2.0, 48 x 1/10/25Gbit LAN SFP28, 8 x 100Gbit/40Gbit LAN QSFP28, 1 x management (RS-232), 2 x management RJ-45
Software
Type :Junos OS
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Power Redundancy Scheme :1+1
Installed Qty :2
Power Provided :650 watt
Nominal Voltage :AC 120/230 V
Miscellaneous
Color Category :Gray
Rack Mounting Kit :Included
Height (Rack Units) :1
Encryption Algorithm :MD5
Authentication Method :RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Compliant Standards :EN 300 386 V2.1.1, BSMI CNS 13438, KN 61000, WEEE, KN32, VCCI-CISPR 32:2016, RoHS 6/6, IEC/EN 61000, ICES-003, EMC-221, EN 60825-1, UL 60950-1, CISPR 32:2012, EN 60950-1:2006+A2:2013, EN 300 386 V1.6.1, FCC CFR47 Part 15, EN 60950-1:2005, EN 55024:2010, CISPR 24:2010, EN 55032:2012, CAN/CSA C22.2 No. 60950-1, AS/NZS CISPR 32:2015, KN35, OCT-16, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight
Width :17.4 inch
Depth :20.5 inch
Height :1.7 inch
Weight :23.7 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Min Storage Temperature :-40 degree Fahrenheit
Max Storage Temperature :158 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
Humidity Range Storage :0 – 95% (non-condensing)
