General

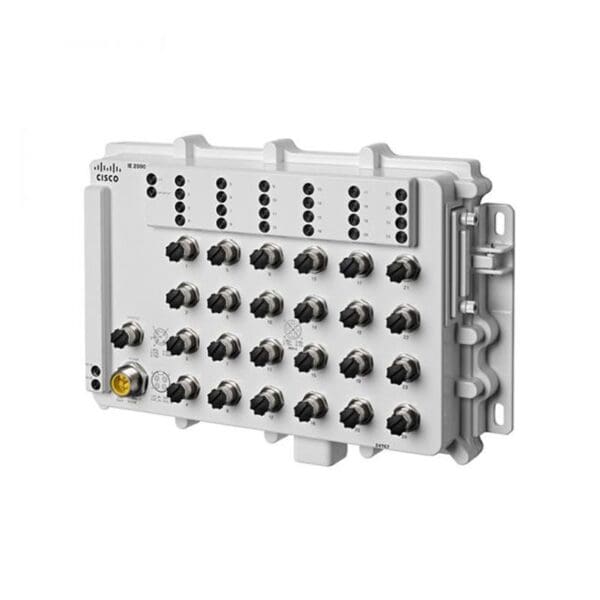

Device Type Switch – 24 ports – managed
Enclosure Type Wall-mountable
Subtype Fast Ethernet
Ports 24 x 10/100
Performance Forwarding performance (64-byte packet size): 6.5 Mpps
Capacity IGMP groups: 255 | VLANs supported: 1005
MAC Address Table Size 8K entries
Routing Protocol OSPF, RIP, BGP, static IPv4 routing, static IPv6 routing
Remote Management Protocol SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH
Authentication Method Secure Shell (SSH), RADIUS, TACACS+
Features BOOTP support, ARP support, Cisco Fast EtherChannel, VLAN support, IGMP snooping, Syslog support, DiffServ support, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), Dynamic ARP Inspection (DAI), Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay, Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Class of Service (CoS), IGMP filtering, PROFINET v2
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
RAM 256 MB
Flash Memory 64 MB
Expansion / Connectivity
Interfaces 24 x 100Base-TX M12 | 1 x console M12
Expansion Slots 1 (total) / 1 (free) x SD Memory Card
Power
Power Consumption Operational 12 Watt
Miscellaneous
MTBF 374,052 hours
Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, NEMA Type 4, UL 60950-1, IEC 60950-1, EN 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 508, EN 55011, IP67, CSA 22.2 No. 142, EN 61131-2, IEC 60068-2-64, EN 61000-4-9, EN 61000-4-29, IEC 60068-2-14, IEC 60068-2-31, IEC 60068-2-52, EN 50121-4, VCCI Class A, NEMA TS-2, EN 50121-3-2, EN 61326, CISPR 11 class A, EN 61000-4-10, IEC 61850-3, EN 60945, EN 55022 Class A, EN 50155
Software / System Requirements
Software Included Cisco IOS LAN Base
Dimensions & Weight
Width 14.8 in
Depth 3.2 in
Height 9.5 in
Weight 8.86 lbs
Manufacturer Warranty
Service & Support Limited warranty – 5 years
Environmental Parameters
Min Operating Temperature -40 °F
Max Operating Temperature 140 °F
Humidity Range Operating 5 – 95% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 185 °F
Country of Origin
