Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco

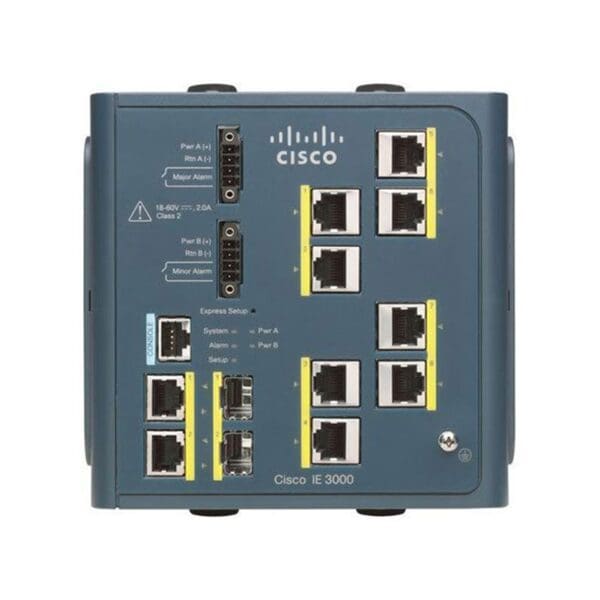

Product Line :Cisco Industrial Ethernet
Model :3000 Series
Packaged Quantity :1
RAM
Installed Size :128 megabyte
Flash Memory
Installed Size :64 megabyte, 64 megabyte
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :Fast Ethernet
Form Factor :DIN rail mountable
Ports Qty :8
Advanced Switching :Layer 3
Routing Protocol :BGP-4, EIGRP, HSRP, IGRP, IS-IS, OSPF, OSPF for IPv6, PIM-DM, PIM-SM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng
MAC Address Table Size :8K entries
Manageable :Yes
Remote Management Protocol :HTTP, HTTPS, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, SSH-2, Telnet
Status Indicators :Port status, System
Features :Access Control List (ACL) support, Broadcast Storm Control, DHCP snooping, Dynamic ARP Inspection (DAI), IGMP snooping, Layer 3 switching, MAC address filtering, Multicast Storm Control, Quality of Service (QoS), Spanning Tree Protocol (STP) support, Unicast Storm Control, VLAN support
Compliant Standards :IEEE 802.1D, IEEE 802.1x, IEEE 802.3ad (LACP)
Ports
Qty :8
Type :10/100
Ports (2nd)
Qty :2
Type :Combo Gigabit SFP
Interface Provided
Interfaces :2 x 1000Base-T RJ-45, 2 x SFP (mini-GBIC), 8 x 100Base-TX RJ-45
Software
Type :Cisco IOS IP Services
Miscellaneous
Rack Mounting Kit :Optional
Authentication Method :RADIUS, Secure Shell v.2 (SSH2), TACACS+
MTBF :329,451 Hours
Compliant Standards :AS/NZS 3548, BSMI CNS 13438 Class A, CB, CISPR 22, CISPR 24, CSA C22.2 No. 60950-1, CSA C22.2 No. 60950-1-03, cUL, EN 50081-2, EN 50082-2, EN55022, EN55024, FCC Part 15 A, IEC 60950, IEC 60950-1, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, MIC, NOM, UL, UL 508, UL 60950-1, VCCI Class A ITE
Dimensions & Weight
Width :6 inch
Depth :4.4 inch
Height :5.8 inch
Weight :4.41 lbs
