Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco Industrial Ethernet

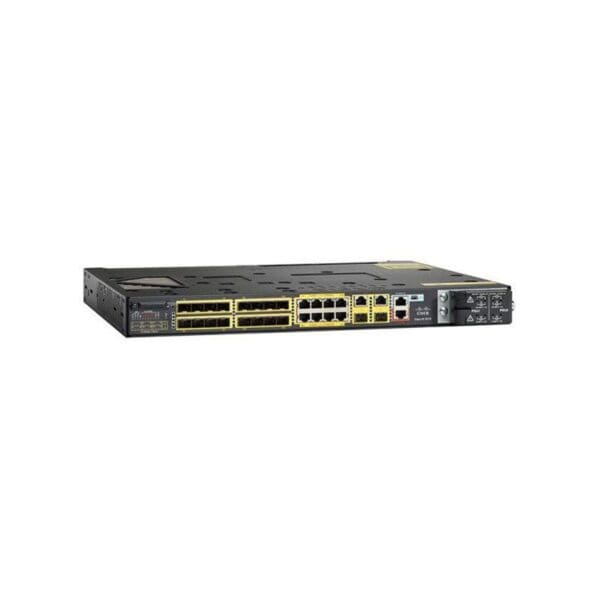

Model :3010 Series
Packaged Quantity :1
RAM
Technology :DDR2 SDRAM
Installed Size :256 megabyte
Flash Memory
Installed Size :1 GB, 1 GB
Performance
Performance :Forwarding performance (64-byte packet size): 6.5 Mpps
Capacity
Capacity :Active VLANs: 255
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :Gigabit Ethernet
Form Factor :Rack-mountable
MAC Address Table Size :12K entries
Jumbo Frame Support :9018 bytes
Manageable :Yes
Remote Management Protocol :HTTP, HTTPS, SNMP 1, SNMP 2, SNMP 3, SSH-2, Telnet
Power Over Ethernet (PoE) :PoE
Features :Access Control List (ACL) support, Broadcast Storm Control, DHCP snooping, DHCP support, Dynamic ARP Inspection (DAI), IGMP snooping, Jumbo Frames support, MAC address filtering, MLD snooping, Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Spanning Tree Protocol (STP) support, Unicast Storm Control, VLAN support
Compliant Standards :IEEE 802.1ab (LLDP), IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ports
Qty :16
Type :100 Mbit SFP
Ports (2nd)
Qty :8
Type :10/100/1000
Ports (3rd)
Qty :2
Type :Combo Gigabit SFP
Expansion Slots
Expansion Slots :1 (total) / 0 (free) x SD Memory Card
Interface Provided
Interfaces :1 x alarm – RJ-45, 1 x console – mini-USB Type B management, 1 x console RJ-45 management, 18 x SFP (mini-GBIC), 2 x 1000Base-T RJ-45, 8 x 1000Base-T RJ-45 PoE
Software
Type :Cisco IOS LAN Base
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Installed Qty :0
Max Supported Qty :2
Miscellaneous
Refurbished :Refurbished
Rack Mounting Kit :Included
Height (Rack Units) :1
Authentication Method :RADIUS, Secure Shell v.2 (SSH2), TACACS+
MTBF :230,112 Hours
Compliant Standards :AS/NZS 3548 Class A, BSMI CNS 13438 Class A, CB, CISPR 11, CISPR 22, CISPR 24, CSA 22.2 No. 142, EN 300 386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 61000-6-4, EN 61131-2, EN 61326-1, EN300-386, EN55022, EN55024, FCC Part 15 A, IEC 60529 IP20, IEC 60950-1, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, KCC, NOM, UL 508, UL 60950-1, VCCI Class A ITE
Dimensions & Weight
Width :17.5 inch
Depth :14 inch
Height :1.8 inch
Weight :9.92 lbs
