Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco

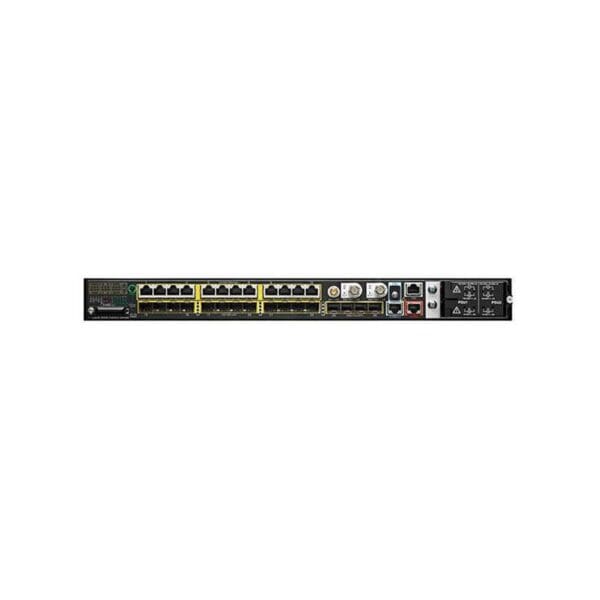

Product Line :Cisco Industrial Ethernet
Model :5000 Series
Packaged Quantity :1
Chassis
Built-in Devices :SD card reader
RAM
Installed Size :1 GB
Flash Memory
Installed Size :256 megabyte, 256 megabyte
Performance
Performance :Forwarding bandwidth: 64 Gbps, Forwarding rate: 95.238 Mpps, Switching bandwidth: 128 Gbps
Capacity
Capacity :IGMP groups: 1000, NAT translations: 256, RADIUS clients: 4, VLANs supported: 1005
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :Gigabit Ethernet
Form Factor :Rack-mountable
Stackable :Stackable
Ports Qty :28
Routing Protocol :BGP-4, Bidirectional Forwarding Detection (BFD), EIGRP, EIGRP for IPv6, HSRP, IGMP, IGMPv2, IGMPv3, IS-IS, OSPF, OSPF for IPv6, PIM-DM, PIM-SM, Policy-based routing (PBR), RIP-2, RIPng, Static IPv4 routing
MAC Address Table Size :16K entries
Manageable :Yes
Remote Management Protocol :CLI, HTTP, RMON, SCP, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet, TFTP
Power Over Ethernet (PoE) :PoE+
Features :802.1x authentication, ARP support, Bidirectional Forwarding Detection (BFD), Broadcast Storm Control, CIP Sync (IEEE 1588), DHCP server, DHCP snooping, Digital Optical Monitoring (DOM) support, Dying Gasp support, Dynamic ARP Inspection (DAI), EtherNet/IP CIP Messaging, Fanless, Flex Link support, Full duplex mode, Guest VLAN, IGMP filtering, IGMP querier, IGMP snooping, IP source guard, IPv6 support, Layer 2 switching, Layer 3 switching, LLDP support, MACsec support, Management Information Base (MIB), Multicast Storm Control, NAT support, Network Timing Protocol (NTP), Oven-Controlled Quartz Oscillator (OCXO), Parallel Redundancy Protocol (PRP), Port Security, Private VLAN, PROFINET v2, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Resilient Ethernet Protocol (REP), SmartPort technology, SNMP support, Static routing, STP BPDU Guard, Syslog support, TrustSec support, Unicast Storm Control, Uni-Directional Link Detection (UDLD), Virtual Route Forwarding-Lite (VRF-Lite), VLAN Double Tagging (Q-in-Q), Voice VLAN
Compliant Standards :IEEE 1588v2, IEEE 1613, IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ports
Qty :4
Type :1 Gigabit / 10 Gigabit SFP+
Ports (2nd)
Qty :12
Type :Fast Ethernet/Gigabit SFP
Ports (3rd)
Qty :12
Type :10/100/1000 (PoE+)
Expansion Slots
Expansion Slots :1 (total) / 0 (free) x SD Memory Card
Interface Provided
Interfaces :1 x alarm RJ-45, 1 x antenna input, 1 x console RJ-45, 1 x mini-USB, 1 x ToD, 12 x 1000Base-T RJ-45 PoE+, 12 x 1000Base-X SFP, 4 x 10GBase-X SFP+ uplink
Software
Type :Cisco LAN Base software
Power Device
Type :Internal power supply
Power Redundancy :Optional
Power Redundancy Scheme :1+1
Installed Qty :0
Max Supported Qty :2
Power Consumption Operational :90 watt
Miscellaneous
Color Category :Black
Included Accessories :1 GB SD card
TAA Compliant :Yes
Height (Rack Units) :1
Encryption Algorithm :MODBUS
Authentication Method :RADIUS, Secure Shell (SSH), TACACS+
MTBF :390,190 Hours
Compliant Standards :AS/NZS CISPR 24, China RoHS, CISPR 11 class A, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, CSA 22.2 No. 142, EN 50121-3-2, EN 50121-4, EN 55022 Class A, EN 60068-2-52, EN 60068-2-60, EN 60950-1, EN 61000-4-11, EN 61000-4-18, EN 61000-4-2, EN 61000-4-29, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-9, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, EN 61131-2, EN 61326, EN 61373, EN50155, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-3, IEC 60068-2-30, IEC 60068-2-32, IEC 60068-2-6, IEC 60068-2-64, IEC 60079, IEC 60529 IP30, IEC 60950-1, IEC 61850-3, IEEE 1588, IEEE 1613 Class 2, ISO 9223, KN22, KN24, NOM-019-SCFI, RoHS, UL 508, UL 60950-1, VCCI Class A
Dimensions & Weight
Width :17.5 inch
Depth :14 inch
Height :1.8 inch
Weight :13.69 lbs
