Manufacturer :Cisco Systems
Brand :Cisco
Product Line :Cisco Catalyst

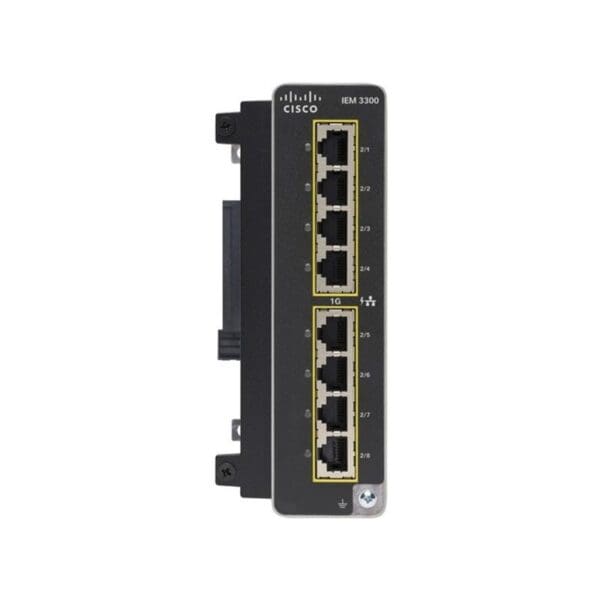

Model :IE3300 Rugged Series
Packaged Quantity :1
Networking
Type :Expansion module
Form Factor :DIN rail mountable
Connectivity Technology :Wired
Cabling Type :Ethernet 1000Base-T
Data Link Protocol :Gigabit Ethernet
Features :Bridge protocol data unit (BPDU), Cisco Gigabit EtherChannel, DHCP server, DHCP snooping, Dynamic ARP Inspection (DAI), IGMP filtering, IGMP querier, LLDP support, MAC address filtering, Management Information Base (MIB), Multiple Spanning Tree Protocol (MSTP) support, Network Timing Protocol (NTP), Per-VLAN Spanning Tree Plus (PVST+), Quality of Service (QoS), RADIUS support, Rapid Reconfiguration of Spanning Tree (RSTP), Remote Switch Port Analyzer (RSPAN), Secure Copy (SCP), SmartPort technology, SNMP support, SSH support, Syslog support, Uni-Directional Link Detection (UDLD), VLAN Trunking Protocol (VTP) v.2, VLAN Trunking Protocol (VTP) v.3
Compliant Standards :IEEE 1588v2, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ports
Qty :8
Type :10/100/1000
Interface Provided
Interfaces :8 x 1000Base-T – RJ-45
Power Device
Power Consumption Operational :7 watt
Miscellaneous
Color Category :Black
MTBF :3,041,040 Hours
Compliant Standards :AS/NZS CISPR 32 Class A, AS/NZS CISPR32 Class A, CISPR 11 class A, CISPR 32 Class A, CISPR 35, CNS 13438 Class A, EN 300 386, EN 50121-4, EN 55032, EN 60068-2-52, EN 60068-2-60, EN 60079-0, EN 61000-4-10, EN 61000-4-16, EN 61000-4-17, EN 61000-4-18, EN 61000-4-2, EN 61000-4-29, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, EN 61326-1, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60068-2-27, IEC 60068-2-30, IEC 60068-2-78, IEC 60079-0, IEC 60950-1, IEC/EN 61010-2-201, IEEE 1613, IP30, KN32 Class A, KN35, MIL-STD-810, UL 121201, UL 62368-1, UL/CSA 60079-0, UL/CSA 61010-2-201, UL/CSA60950-1, VCCI Class A
Dimensions & Weight
Width :2.4 inch
Depth :5.3 inch
Height :6 inch
Weight :31.04 ounce
