General

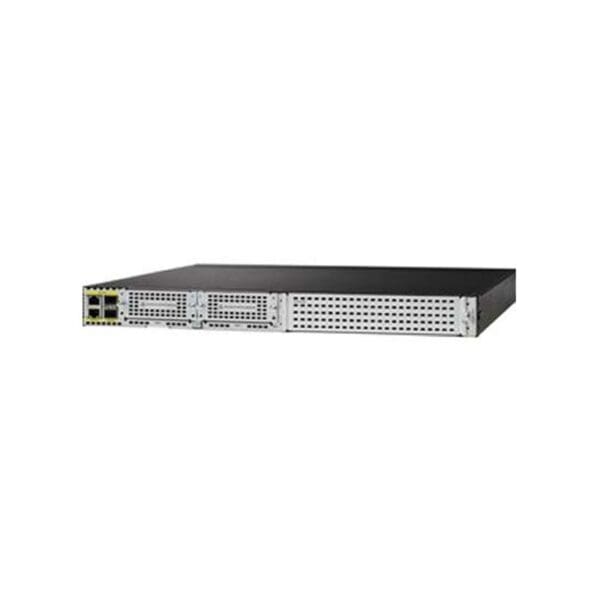

Device Type Router
Enclosure Type Rack-mountable – modular – 1U
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Performance Aggregate throughput: 100 Mbps
Network / Transport Protocol IPSec, PPPoE, DHCP
Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), IPv4-to-IPv6 Multicast
Remote Management Protocol SNMP, RMON
Features Firewall protection, VPN support, VLAN support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), wall mountable, Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), RADIUS support, NetFlow, IPFIX, DNA support
Compliant Standards IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824, CISPR 22 Class A, CISPR 24, EN55024, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 3548 Class A, GB 4943, VCCI V-3, EN 61000, KN22, KN24, CNS 13438, EN 55022 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1
RAM 4 GB (installed) / 16 GB (max) – DDR3 SDRAM
Flash Memory 4 GB (installed) / 16 GB (max)
Expansion / Connectivity
Interfaces WAN / LAN: 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 | Serial: 1 x console – RJ-45 | Management: 1 x console – mini-USB Type B | Serial: 1 x auxiliary – RJ-45 | USB 2.0: 1 x 4 pin USB Type A | 2 x SFP (mini-GBIC) | Management: 1 x RJ-45
Expansion Slots 2 (total) / 2 (free) x NIM | 1 (total) / 0 (free) x ISC | 1 (total) / 1 (free) x Enhanced Service Module (SM-X) | 2 (total) / 0 (free) x DIMM 240-pin
Power
Power Device Internal power supply – 250 Watt
Installed Qty 1 (installed) / 1 (max)
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Rack Mounting Kit Included
Dimensions & Weight
Width 17.2 in
Depth 17.2 in
Height 1.8 in
Weight 11.02 lbs
