General

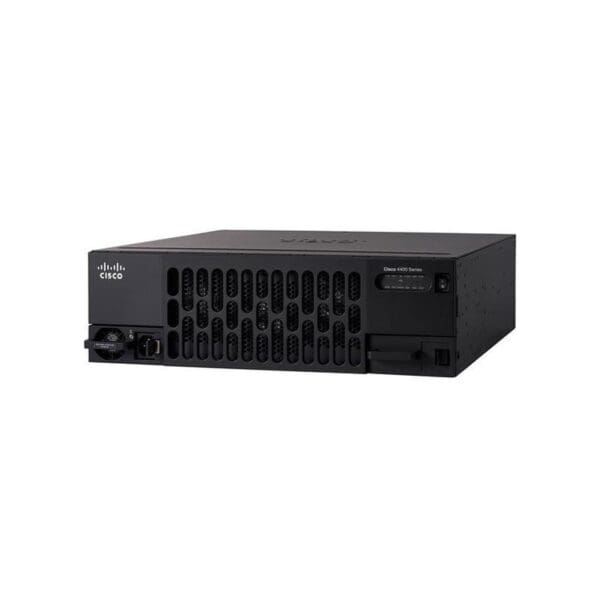

Device Type Router
Enclosure Type Desktop, rack-mountable – modular – 2U
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol IPSec, PPPoE, L2TPv3
Routing Protocol OSPF, RIP, IS-IS, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)
Remote Management Protocol SNMP, RMON
Features Firewall protection, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN)
Compliant Standards IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag, CISPR 22 Class A, CISPR 24, EN55024, EN50082-1, AS/NZS 60950-1, AS/NZ 3548 Class A, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, VCCI V-3, EN 61000, EMI, KN22, KN24, EN 55022 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1
RAM 4 GB (installed) / 16 GB (max)
Flash Memory 8 GB (installed) / 32 GB (max)
Status Indicators Power, link/activity
Expansion / Connectivity
Interfaces 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45 | Management: 1 x console – RJ-45 | Management: 1 x console – mini-USB Type B | Serial: 2 x auxiliary – RJ-45 | USB 2.0: 2 x 4 pin USB Type A | 4 x SFP (mini-GBIC)
Expansion Slots 3 (total) / 3 (free) x EHWIC | 1 (total) / 1 (free) x PVDM | 2 (total) / 1 (free) x CompactFlash | 1 (total) / 1 (free) x expansion slot | 3 (total) / 3 (free) x service module (SM)
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (47/63 Hz)
Miscellaneous
Rack Mounting Kit Included
Software / System Requirements
OS Provided Cisco IOS IP Base
Dimensions & Weight
Width 17.2 in
Depth 18.5 in
Height 3.5 in
Weight 28.88 lbs
