Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks M-series

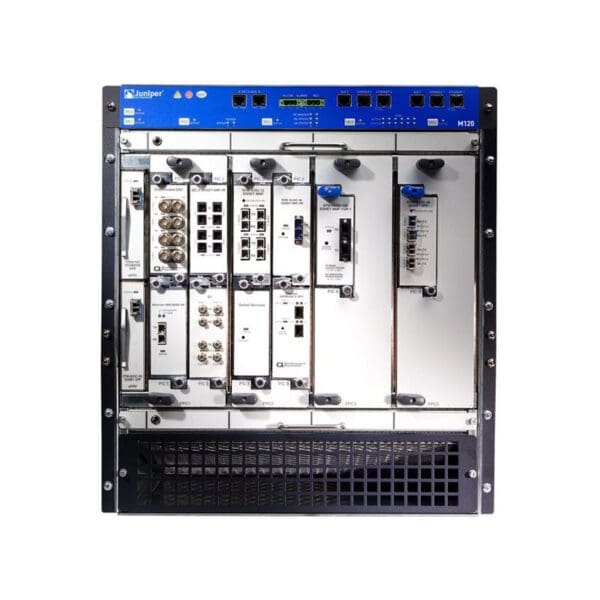

Model :M120
Packaged Quantity :1
Chassis
Supported Devices / Modules Qty :8
Processor
Installed Qty :1
Clock Speed :1 GHZ
RAM
Installed Size :2 GB
Hard Drive
Capacity :40 GB
Networking
Type :Modular expansion base
Form Factor :Desktop
Modular :Modular
Connectivity Technology :Wired
Data Link Protocol :Frame Relay, ATM
Remote Management Protocol :SNMP 2, HTTP, SNMP 3
Status Indicators :Status
Key Features :VPN support
Features :MPLS support, High Availability, Modular design, Quality of Service (QoS), VPN support, IPv6 support, Manageable
Expansion Slots
Expansion Slots :8 expansion slot
OS Provided
Type :JUNOS
Power Device
Type :Internal power supply
Power Redundancy :Yes
Nominal Voltage :AC 120/230 V
Miscellaneous
Height (Rack Units) :12
Compliant Standards :VCCI Class B ITE, EN55022 Class B, EN 61000-4-4, EN 61000-4-3, IEC 825-1/EN 60825-1 class 1, AS/NZ 3548 Class B, EN 61000-4-2, EN 61000-4-11, EN 60950, CSA C22.2 No. 60950-00, EN 61000-4-6, NEBS level 3, BSMI, EN 61000-4-5, EMC, UL 60950, EN 61000-3-2, FCC Part 15 B
Dimensions & Weight
Width :17.5 inch
Depth :25.7 inch
Height :20.7 inch
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 90%
