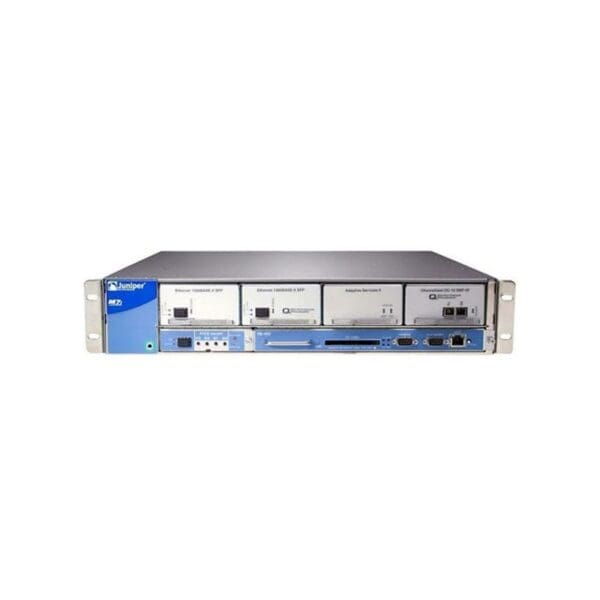

Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks M-series
Model :M7i
Packaged Quantity :1
Chassis
Built-in Devices :Midplane
Installed Devices / Modules Qty :2
Supported Devices / Modules Qty :6
Processor
Installed Qty :1
Clock Speed :1.8 GHZ
Line Properties
Line Rate :OC-192/STM-64
Performance
Performance :Throughput:
Networking
Type :Router
Form Factor :Rack-mountable
Modular :Modular
Connectivity Technology :Wired
Data Link Protocol :Fast Ethernet, PPP, X.21, ATM, Ethernet, RS-449, HDLC, RS-232, SONET/SDH, Frame Relay, V.35, Gigabit Ethernet, TDM
Routing Protocol :BGP, RIP-2, GRE, MPLS, OSPF, IGMPv3, Static IP routing, IS-IS, VRRP, Bidirectional Forwarding Detection (BFD)
Network / Transport Protocol :IPSec, PPPoA, RSVP, DHCP
Remote Management Protocol :SNMP 2, SNMP 3, HTTP, CLI
Data Transfer Rate :10 GBps
Key Features :VPN support
Features :Tagged VLAN, IPv4 support, Hot swap module replacement, High Availability, Layer 2 switching, Manageable, ASIC VPN, DiffServ support, VLAN support, Layer 3 switching, DHCP relay, Link Aggregation Control Protocol (LACP), DDos attack prevention, Syslog support, Weighted Random Early Detection (WRED), Class of Service (CoS), Tunneling, Asynchronous Transfer Mode (ATM), Modular design, Packet filtering, DoS attack prevention, VPN support, Firmware upgradable, MPLS support, IPv6 support, NAT support, Quality of Service (QoS), GRE tunneling, Layer 2.5 switching, Automatic Protection Switching (APS)
Compliant Standards :IEEE 802.3ad (LACP), IEEE 802.1Q
Expansion Slots
Expansion Slots :4 (total) / 4 (free) x expansion slot, 2 (total) / 0 (free) x Services and Routing Engine (SRE)
Interface Provided
Interfaces :1 x 1000Base-X – SFP (mini-GBIC)
OS Provided
Type :JUNOS
Power Device
Type :Internal power supply
Power Redundancy :Yes
Installed Qty :1
Max Supported Qty :2
Power Provided :400 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Encryption Algorithm :SHA-1, MD5
Authentication Method :RADIUS
Compliant Standards :EN 60825-2, EN 61000-4-4, EN 61000-4-3, EN 61000-3-2, EN 61000-4-2, EN 61000-4-5, UL 60950, GR-63-CORE, ETSI, GR-1089-CORE, EN 60950, FCC Part 15 B, EN55022 Class B, EN 60825-1, AS/NZS 3548 Class B, EN 61000-4-6, CSA C22.2 No. 60950-00, EN 61000-3-3, BSMI Class B, NEBS level 3, VCCI Class B, EN 61000-4-11
Dimensions & Weight
Width :17.5 inch
Depth :18 inch
Height :3.5 inch
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
