Capacity
Type :MAC forwarding entries
Value :16000
Type :VLANs supported
Value :4094
Dimensions & Weight
Depth :9.8 in
Height :1.7 in
Weight :8.18 lbs
Width :17.3 in
Environmental Parameters
Humidity Range Operating :5 – 95% (non-condensing)
Max Operating Temperature :104 °F
Min Operating Temperature :32 °F
Header
Brand :Cisco Meraki
Manufacturer :CISCO DS HARDWARE DIRECT

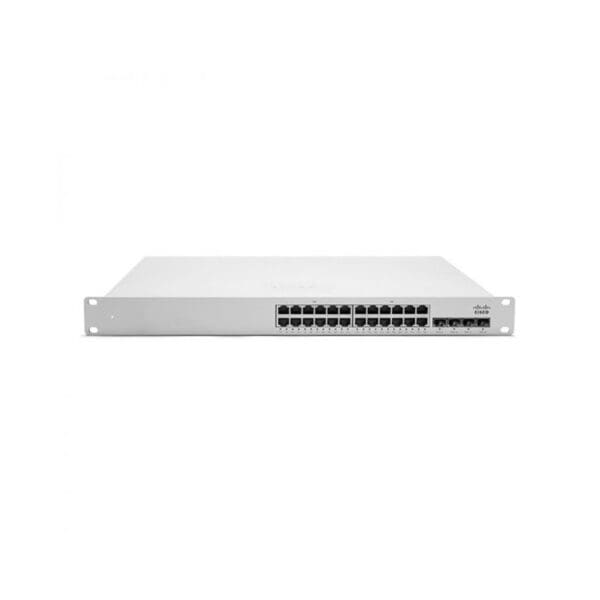

Model :MS120-24P
Packaged Quantity :1
Ethernet Technology: Gigabit Ethernet
Product Line :Cisco Meraki Cloud Managed
Product Series : MS120
Interface Provided
Connector Type :RJ-45
Qty :24 Port
Type :1000Base-T
Connector Type :SFP
Qty :4 SFP
Miscellaneous
Authentication Method :RADIUS
Color Category :White
Compliant Standards :CSA, FCC, IC, RCM, RoHS
Height (Rack Units) :1
MTBF :1,700,716 hours
Rack Mounting Kit :Included
Networking
Compliant Standards :IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af
Features :Access Control List (ACL) support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Broadcast Storm Control, Cisco Discovery Protocol, Crossover detection, DHCP client, DHCP snooping, DSCP to CoS Mutation, E-mail alert, Fanless, Firmware upgradable, Flow control, IGMP snooping, Port mirroring, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Role-Based Access Control (RBAC), Single Sign-On (SSO) support, SMS alert, Spanning Tree Protocol (STP) support, STP BPDU Guard, STP Root Guard, Syslog support, VLAN support, Zero-touch provisioning (ZTP)
Form Factor :Desktop, Rack-mountable
Jumbo Frame Support :9578 bytes
Manageable :Yes
PoE Budget :370 W
Ports Qty :24
Power Over Ethernet (PoE) :PoE
Remote Management Protocol :SNMP
Subcategory :Network hubs and switches
Subtype :Gigabit Ethernet
Type :Switch
Performance
Type :Forwarding rate
Value :41.67 Mpps
Type :Switching capacity
Value :56 Gbps
Ports
Qty :24
Type :10/100/1000
Ports (2nd)
Qty :4
Type :Gigabit SFP
Power Device
Frequency Required :47 – 63 Hz
Nominal Voltage :AC 120/230 V
Type :Internal power supply
