Dimensions & Weight
Depth :13.4 in
Height :1.7 in
Weight :9.63 lbs
Width :19.1 in
Environmental Parameters
Humidity Range Operating :5 – 95% (non-condensing)
Max Operating Temperature :104 °F
Min Operating Temperature :32 °F
Header
Brand :Cisco Meraki
Compatibility :PC
Ethernet Technology: Gigabit Ethernet
Manufacturer :CISCO DS HARDWARE DIRECT

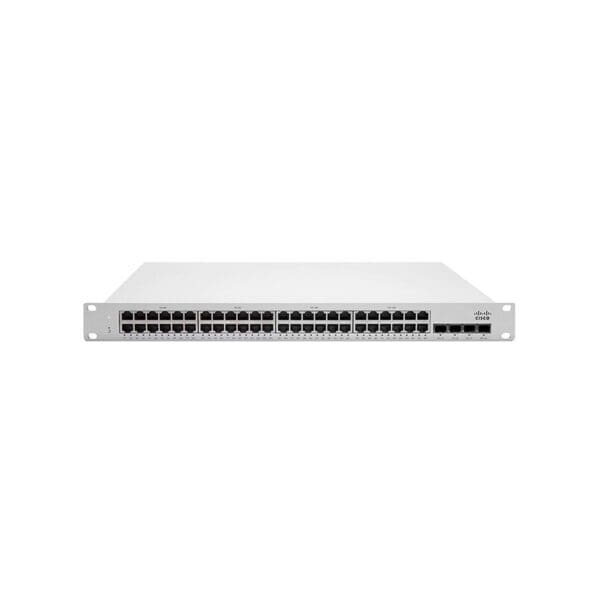

Model :MS225-48FP
Packaged Quantity :1
Product Line :Cisco Meraki Cloud Managed
Product Series : MS225
Interface Provided
Comments :PoE+
Connector Type :RJ-45
Qty :48 Port
Type :1000Base-T
Comments :Uplink
Connector Type :SFP+
Qty :4 SFP+
Type :10Gbit LAN
Miscellaneous
Authentication Method :RADIUS
Color Category :White
Compliant Standards :CSA, FCC, IC, RCM, RoHS
Height (Rack Units) :1
MTBF :320,555 hours
Networking
Compliant Standards :IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at
Features :Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Bridge protocol data unit (BPDU), Broadcast Storm Control, Cisco Discovery Protocol, Cloud managed, Crossover detection, DHCP relay, DHCP support, E-mail alert, Firmware upgradable, Flow control, IGMP snooping, IPv4 support, Jumbo Frames support, Link Aggregation Control Protocol (LACP), LLDP support, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Role-Based Access Control (RBAC), Root Guard, SMS alert, Spanning Tree Protocol (STP) support, Static routing, Syslog support, VLAN support
Form Factor :Rack-mountable
Manageable :Yes
Max Units In A Stack :8
PoE Budget :740 W
Ports Qty :48
Power Over Ethernet (PoE) :PoE+
Remote Management Protocol :SNMP
Stackable :Stackable
Subcategory :Network hubs and switches
Subtype :Gigabit Ethernet
Type :Switch
Ports
Qty :48
Type :10/100/1000 (PoE+)
Ports (2nd)
Qty :4
Type :10 Gigabit SFP+ (uplink)
Power Device
Features :Redundant Power System (RPS) connector
Frequency Required :47 – 63 Hz
Nominal Voltage :AC 120/230 V
Power Redundancy :Optional
Type :Internal power supply
