Environmental Parameters
Max Operating Temperature :104 °F
Min Operating Temperature :32 °F
Header
Brand :Cisco Meraki
Compatibility :PC
Manufacturer :CISCO DS HARDWARE DIRECT

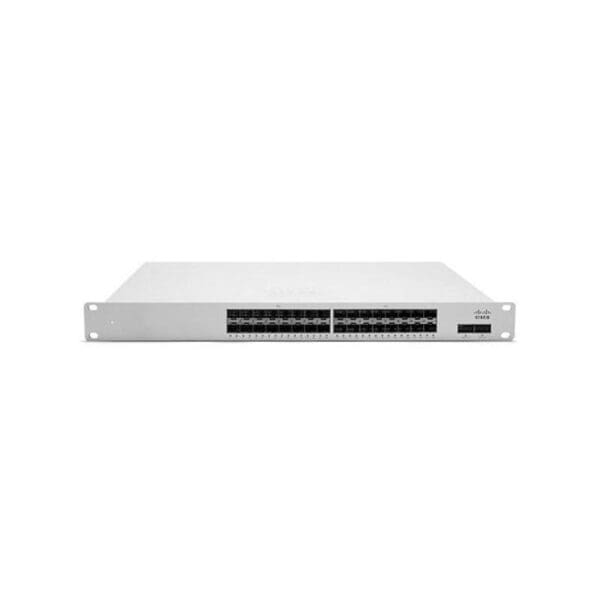

Model :MS425-32
Packaged Quantity :1
Product Line :Cisco Meraki Cloud Managed Ethernet Aggregation Switch
Oroduct Series: MS425
Interface Provided
Comments :Uplink/stacking
Connector Type :QSFP+
Qty :2
Type :40Gbit LAN
Type :Management (Gigabit LAN)
Connector Type :SFP+
Qty :32 SFP Port Network Switch
Type :1000Base-X
Miscellaneous
Authentication Method :RADIUS
Color Category :Silver
Compliant Standards :C-Tick, CSA, IC, RoHS
Height (Rack Units) :1
MTBF :431,380 hours
Networking
Compliant Standards :IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP)
Features :Broadcast Storm Control, Cloud managed, DHCP support, E-mail alert, Firmware upgradable, Front to back airflow, IGMP snooping, Layer 3 switching, Link Aggregation Control Protocol (LACP), LLDP support, Port mirroring, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, SMS alert, Spanning Tree Protocol (STP) support, Tagged VLAN, VLAN support, Zero Touch Auto Provisioning
Form Factor :Rack-mountable
Manageable :Yes
Ports Qty :32
Routing Protocol :OSPFv2, Static IP routing
Stackable :Stackable
Subcategory :Network hubs and switches
Subtype :10 Gigabit Ethernet
Type :Switch
Power Device
Frequency Required :47 – 63 Hz
Nominal Voltage :AC 120/230 V
Type :Internal power supply
Dimensions & Weight
Depth :19.2 in
Height :1.8 in
Weight :14 lbs
Width :19.1 in
Capacity
Type :Tagged VLANs
Value :4095
Performance
Type :Switching capacity
Value :800 Gbps
Ports
Qty :32
Type :10 Gigabit SFP+
Ports (2nd)
Qty :2
Type :40 Gigabit QSFP+ (uplink)
