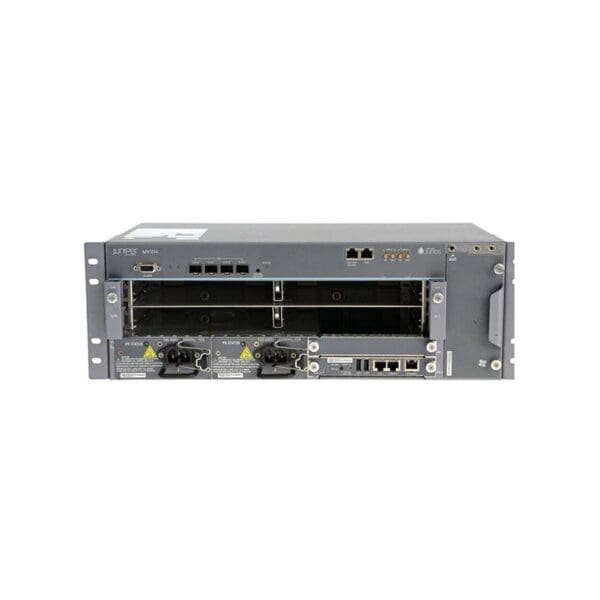

Refurbished MX104-80G-DC-BNDL Juniper MX-series MX104

Refurbished MX104-80G-DC-BNDL Juniper MX-series MX104

$27,800.00

Juniper Networks SDN-ready MX104 3D Universal Edge Router is optimized for the aggregation of mobile, enterprise WAN, business, and residential access services. Based on a central office-optimized MX series chassis supporting a redundant control plane for high availability, the MX104 is temperature hardened to allow deployment in outside cabinets and remote terminals. It also provides services that extend the service edge to the aggregation domain. The MX104 incorporates industry-leading timing and synchronization technology to enhance quality of experience (QoE) for mobile broadband, and is managed through the Junos Space Network Management Platform for rapid service design provisioning and lower TCO.

Refurbished MX104-80G-DC-BNDL Juniper MX-series MX104
$27,800.00
Contact Us

Manufacturer :Netscreen

Brand :Juniper, Juniper Networks

Product Line :Juniper Networks MX-series

Model :MX104 Promotional Bundle

Packaged Quantity :1

Chassis

Airflow Direction :Side to side airflow

Installed Devices / Modules Qty :1

Supported Devices / Modules Qty :6

RAM

Technology :DDR3 SDRAM

Installed Size :4 GB

Performance

Performance :Scaling capacity: 80 Gbps

Networking

Type :Router

Form Factor :Rack-mountable

Modular :Modular

Connectivity Technology :Wired

Data Link Protocol :TDM, PTP

Network / Transport Protocol :DHCP, IPSec

Remote Management Protocol :SNMP 2, SNMP 1, SNMP 3, CLI

Key Features :VPN support, USB port

Features :Fan tray, J-Flow, Quality of Service (QoS), NTP time synchronization, NAT support, VPN support, Non-Stop Routing (NSR), Side to side airflow

Compliant Standards :IEEE 1588-2008

Expansion Slots

Expansion Slots :4 (total) / 4 (free) x Modular Interface Card (MIC), 2 (total) / 1 (free) x Services and Routing Engine (SRE)

Interface Provided

Interfaces :Management: 1 x console, USB: 2 x, Alarm: 4 x input, Alarm: 4 x output, Management: 1 x, 4 x 10Gb Ethernet – SFP+, Management: 1 x RS-232

Power Device

Type :Internal power supply

Hot-Plug :Hot-plug

Power Redundancy :Yes

Installed Qty :2

Max Supported Qty :2

Nominal Voltage :DC 24/-48/-60 V

System Requirements

OS Required :JUNOS

Miscellaneous

Color Category :Gray

Height (Rack Units) :3.5

Compliant Standards :EN 60950-1, EMI, VCCI Class A, TUV, IEC 60950-1, EN55024:1998 + A1 + A2, EN 61000-4-2, EN 61000-4-4, ETSI 300 019, ETS 300 753, CCC, UL, EN 60825-1, NEBS level 3, NCC, FCC Part 15 A, IRAM, EN 61000-3-2, EN 61000-4-6, EN55022 Class B, EN 61000-4-3, CSA, EN 61000-4-5, S Mark, EN55024, EN 60950-1 Second Edition, GR-1089-CORE, UL 60950-1 Second Edition, EN55022 Class A, EN 61000-3-3, EN 300386, BSMI CNS 13438, GR-63-CORE, EN 61000-4-11, CAN/CSA C22.2 No. 60950-1, ITU-T K.20, CAN/CSA-C22.2 No. 60950-1

Dimensions & Weight

Width :17.5 inch

Depth :9.5 inch

Height :6.1 inch

Weight :31.97 lbs

Environmental Parameters

Min Operating Temperature :-40 degree Fahrenheit

Max Operating Temperature :149 degree Fahrenheit

Humidity Range Operating :5 – 85% (non-condensing)

SKU: MX104-80G-DC-BNDL-RF Category: Tag:
