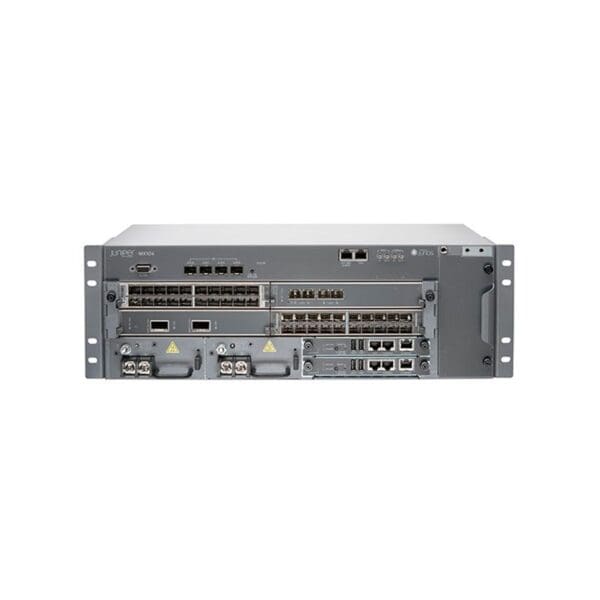

Refurbished MX104-AC Juniper Networks MX104-AC Chassis

Refurbished MX104-AC Juniper Networks MX104-AC Chassis

$8,300.00

The Juniper Networks MX104-AC chassis provides redundancy and resiliency. It comes with four Modular Interface Card (MIC) slots and four redundant fixed 10GbE small form-factor pluggable (XFP) built-in ports for flexible network connectivity (license required for activation). Also included are the AC power supply, fan tray with filter, as well as a packet forwarding engine and routing engine. The hardware system is fully redundant, including power supplies, routing engines, and cooling system. A fully configured router is designed so that no single point of failure can cause the entire system to fail. Only a fully configured router provides complete redundancy. All other configurations provide partial redundancy. The MX104 Universal Routing Platform is a fixed-configuration platform that supports modular interfaces. The MX104 is a mobile backhaul-optimized, ETSI 300 mm-compliant chassis with high redundancy and 80 Gbps of throughput.

Refurbished MX104-AC Juniper Networks MX104-AC Chassis
$8,300.00
Contact Us

Manufacturer :Netscreen

Brand :Juniper, Juniper Networks

Product Line :Juniper Networks MX-series

Model :MX104

Packaged Quantity :1

Chassis

Airflow Direction :Side to side airflow

Supported Devices / Modules Qty :6

RAM

Technology :DDR3 SDRAM

Installed Size :4 GB

Networking

Type :Router

Form Factor :Rack-mountable

Modular :Modular

Connectivity Technology :Wired

Network / Transport Protocol :DHCP, IPSec

Remote Management Protocol :CLI, SNMP 1, SNMP 2, SNMP 3

Key Features :USB port, VPN support

Features :Fan tray, High Availability, In-Service Software Upgrade (ISSU), NAT support, Non-Stop Routing (NSR), NTP time synchronization, Precision Time Protocol (PTP), Quality of Service (QoS), VPN support

Compliant Standards :IEEE 1588-2008

Expansion Slots

Expansion Slots :2 Services and Routing Engine (SRE), 4 (total) / 4 (free) x Modular Interface Card (MIC)

Interface Provided

Interfaces :4 x 10Gb Ethernet – SFP+, Alarm: 4 x input, Alarm: 4 x output, Management: 1 x, Management: 1 x console, Management: 1 x RS-232, USB: 2 x

Power Device

Type :Internal power supply

Hot-Plug :Hot-plug

Max Supported Qty :2

Nominal Voltage :AC 100/230 V

Frequency Required :50/60 hertz

System Requirements

OS Required :JUNOS

Miscellaneous

Color Category :Gray

Height (Rack Units) :3.5

Compliant Standards :BSMI CNS 13438, CAN/CSA-C22.2 No. 60950-1, EMI, EN 300 386 V1.3.3, EN 55022 Class A, EN 60825-1, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN55024:1998 + A1 + A2, ETS 300 753, ETSI 300 019, FCC Part 15 A, GR-1089-CORE, GR-63-CORE, IEC 60950-1, NCC, NEBS level 3, UL 60950-1 Second Edition, VCCI Class A

Dimensions & Weight

Width :17.5 inch

Depth :9.5 inch

Height :6.1 inch

Weight :31.97 lbs

Environmental Parameters

Min Operating Temperature :-40 degree Fahrenheit

Max Operating Temperature :149 degree Fahrenheit

Humidity Range Operating :5 – 85% (non-condensing)

SKU: MX104-AC-RF Category: Tag:
