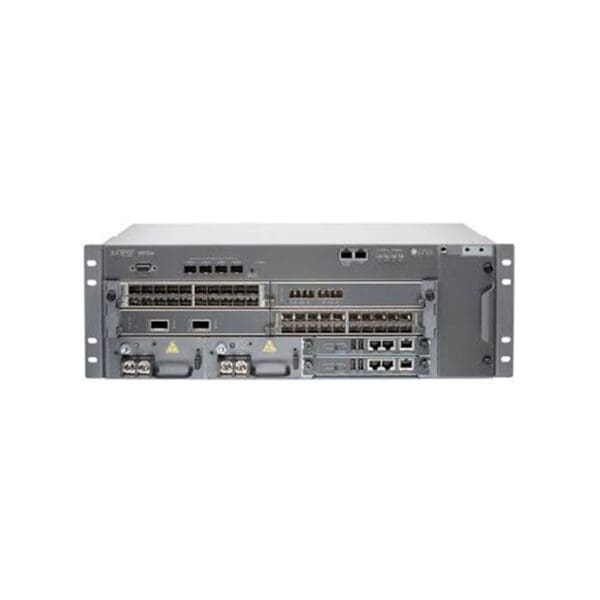

Refurbished MX104-PREM-AC-BNDL Juniper Networks MX-series

Refurbished MX104-PREM-AC-BNDL Juniper Networks MX-series

$11,930.00

Juniper Networks SDN-ready MX104 3D Universal Edge Router is optimized for the aggregation of mobile, enterprise WAN, business, and residential access services. Based on a central office-optimized MX series chassis supporting a redundant control plane for high availability, the MX104 is temperature hardened to allow deployment in outside cabinets and remote terminals. It also provides services that extend the service edge to the aggregation domain. The MX104 incorporates industry-leading timing and synchronization technology to enhance quality of experience (QoE) for mobile broadband, and is managed through the Junos Space Network Management Platform for rapid service design provisioning and lower TCO.

Refurbished MX104-PREM-AC-BNDL Juniper Networks MX-series
$11,930.00
Contact Us

Manufacturer :Netscreen

Brand :Juniper, Juniper Networks

Product Line :Juniper Networks MX-series

Model :MX104

Packaged Quantity :1

Chassis

Airflow Direction :Side to side airflow

Installed Devices / Modules Qty :2

Supported Devices / Modules Qty :6

RAM

Technology :DDR3 SDRAM

Installed Size :4 GB

Performance

Performance :Scaling capacity: 80 Gbps

Networking

Type :Router

Form Factor :Rack-mountable

Modular :Modular

Connectivity Technology :Wired

Data Link Protocol :PTP, TDM

Network / Transport Protocol :IPSec, DHCP

Remote Management Protocol :SNMP 2, SNMP 3, SNMP 1, CLI

Key Features :USB port, VPN support

Features :J-Flow, Side to side airflow, VPN support, Non-Stop Routing (NSR), NAT support, Quality of Service (QoS), NTP time synchronization, Fan tray

Compliant Standards :IEEE 1588-2008

Expansion Slots

Expansion Slots :2 (total) / 0 (free) x Services and Routing Engine (SRE), 4 (total) / 4 (free) x Modular Interface Card (MIC)

Interface Provided

Interfaces :Alarm: 4 x output, Alarm: 4 x input, 4 x 10Gb Ethernet – SFP+, Management: 1 x RS-232, USB: 2 x, Management: 1 x, Management: 1 x console

Power Device

Type :Internal power supply

Hot-Plug :Hot-plug

Power Redundancy :Yes

Installed Qty :2

Max Supported Qty :2

Nominal Voltage :AC 120/230 V

Frequency Required :50/60 hertz

System Requirements

OS Required :JUNOS

Miscellaneous

Color Category :Gray

Height (Rack Units) :3.5

Compliant Standards :TUV, EN 61000-4-5, EN 61000-4-3, EN 60950-1 Second Edition, EN 300386, GR-63-CORE, CCC, EN 61000-4-11, GR-1089-CORE, ETSI 300 019, EN 61000-3-2, BSMI CNS 13438, ETS 300 753, NCC, S Mark, EN 61000-4-2, EN 60950-1, EN 61000-4-4, IRAM, EN 61000-4-6, EN55024:1998 + A1 + A2, NEBS level 3, UL, ITU-T K.20, EN 61000-3-3, EN55024, CAN/CSA C22.2 No. 60950-1, UL 60950-1 Second Edition, VCCI Class A, EN55022 Class A, EMI, CSA, EN55022 Class B, EN 60825-1, FCC Part 15 A, IEC 60950-1, CAN/CSA-C22.2 No. 60950-1

Dimensions & Weight

Width :17.5 inch

Depth :9.5 inch

Height :6.1 inch

Weight :31.97 lbs

Environmental Parameters

Min Operating Temperature :-40 degree Fahrenheit

Max Operating Temperature :149 degree Fahrenheit

Humidity Range Operating :5 – 85% (non-condensing)

SKU: MX104-PREM-AC-BNDL-RF Category: Tag:
