Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks MX-series

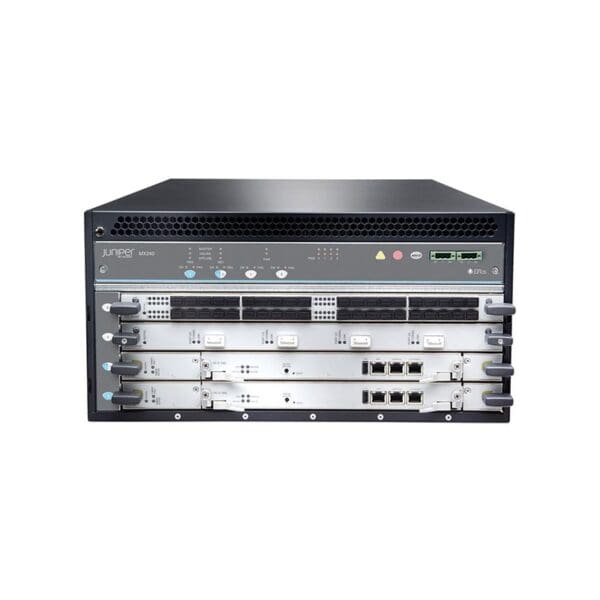

Model :MX240
Packaged Quantity :1
Chassis
Airflow Direction :Side to side airflow
Supported Devices / Modules Qty :4
Performance
Performance :Switching capacity: 3 Tbps, Per-slot switching capacity: 1.5 Tbps
Networking
Type :Router
Form Factor :Rack-mountable
Modular :Modular
Connectivity Technology :Wired
Data Link Protocol :40 Gigabit Ethernet, 400 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet, 100 Gigabit Ethernet
Routing Protocol :GRE, BGP, MPLS
Features :DDoS Protection, Precision Time Protocol (PTP), MPLS LSR support, Virtual Private LAN Service (VPLS), Hierarchical Quality of Service (HQoS), Side to side airflow, DWDM, Firewall protection, Generic Routing Encapsulation (GRE), MACsec support, Network Virtualization using Generic Routing Encapsulation (NVGRE), Layer 2 switching, Network Function Virtualization (NFV), Virtual Extensible LAN (VXLAN), Carrier Grade NAT (CGN/CGNAT), Layer 3 switching, Modular design, Distributed DoS (DDoS)
Compliant Standards :IEEE 802.1BR
Expansion Slots
Expansion Slots :4 (total) / 2 (free) x expansion slot
Power Device
Type :Internal power supply
Power Redundancy :Yes
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Color Category :Black
Height (Rack Units) :5
Compliant Standards :GR-1089-CORE, EMC, GR-63-CORE
Dimensions & Weight
Width :17.4 inch
Depth :24.5 inch
Height :8.7 inch
Weight :130.07 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :114.8 degree Fahrenheit
Humidity Range Operating :5 – 90%
