Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks MX-series

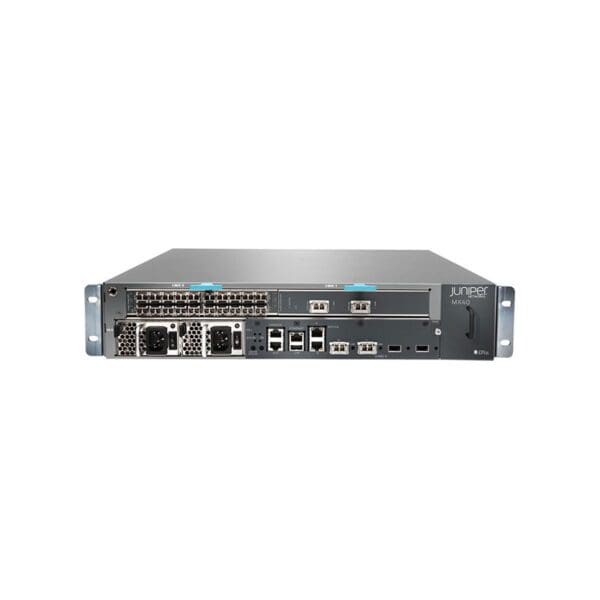

Model :MX40
Packaged Quantity :1
Chassis
Installed Devices / Modules Qty :0
Supported Devices / Modules Qty :2
Modem
Type :None
Performance
Performance :Switching capacity: 60 Gbps
Networking
Type :Router
Form Factor :Rack-mountable
Modular :Modular
Connectivity Technology :Wired
Routing Protocol :GRE
Remote Management Protocol :HTTP, SNMP 2, SNMP 3
Key Features :VPN support
Features :MPLS support, Manageable, Quality of Service (QoS), VPN support, Modular design
Expansion Slots
Expansion Slots :2 (total) / 2 (free) x Modular Interface Card (MIC), 4 (total) / 2 (free) x XFP
Interface Provided
Interfaces :Synchronization: 2 x RJ-45, 1 x USB – 4 pin USB Type A, 1 x Ethernet – RJ-45, 2 x 10Gb Ethernet, 1 x auxiliary – RJ-45, 1 x console – RJ-45
Power Device
Type :Internal power supply
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Miscellaneous
Height (Rack Units) :2
Compliant Standards :EN 61000-4-6, UL 1950 Third Edition, EN 61000-4-3, EN 61000-3-3, EN55022 Class A, EN 61000-4-11, EN 61000-4-5, EN 60825-1, NEBS, EN 61000-4-4, EN 61000-3-2, EN 61000-4-2, CSA C22.2 No. 60950-00, FCC Part 15 A, VCCI Class A ITE, AS/NZS 3548 Class A, EN 60950
Dimensions & Weight
Width :6.9 inch
Depth :23.5 inch
Height :3.5 inch
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
