Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks MX-series

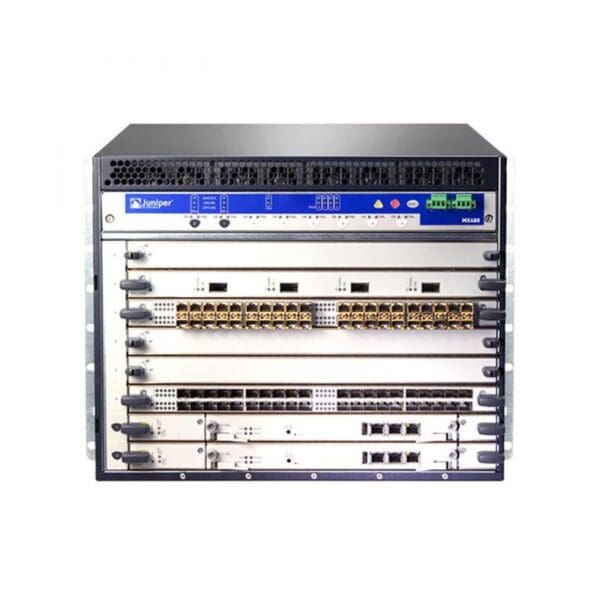

Model :MX480
Edition :Premium
Bundled with :2 x Juniper Networks Switch Control Boards, 2 x Routing Engine
Packaged Quantity :1
Chassis
Installed Devices / Modules Qty :4
Supported Devices / Modules Qty :8
Performance
Performance :Switching capacity: up to 9 Tbps, Per-slot switching capacity: 1.5 Tbps
Networking
Type :Router
Form Factor :Rack-mountable
Modular :Modular
Connectivity Technology :Wired
Data Link Protocol :TDM, Frame Relay, Ethernet, ATM
Routing Protocol :BGP, MPLS, GRE
Key Features :Firewall, VPN support
Features :NAT support, Firewall protection, VPN support, IPv6 support, Virtual Chassis technology, High Availability, IPv4 support, MPLS support, MPLS Fast Reroute (FRR), VLAN support, Switch Fabric Element Redundancy, Quality of Service (QoS)
Expansion Slots
Expansion Slots :2 Routing Engine(RE), 8 expansion slot, 2 Enhanced Switch Control Board (SCBE)
Power Device
Type :Internal power supply
Power Redundancy :Yes
Installed Qty :4
Max Supported Qty :4
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
System Requirements
OS Required :JUNOS
Miscellaneous
Color Category :Black
Height (Rack Units) :8
Dimensions & Weight
Width :17.4 inch
Depth :27.8 inch
Height :14 inch
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
